2.54mm Ejector Header Connector

2.54mm ejector header connector series for ribbon cable and industrial PCB assemblies. Kirision can review dual-row DIP, right-angle and SMT structures, latch direction, mating IDC socket and plating for export RFQs.

Get 2D drawing RFQ quote View Box Header series

2.54mm Vertical DIP Ejector Header Connector, Dual Row product photo by Kirision — Product example shown. Contact us for the required pin count and dimensions.

Available specifications

Product type: IDC ejector header connector
Pitch: 2.54mm
Rows: Dual row
Mounting style: Vertical DIP, right-angle through-hole and SMT
Catalog codes: 0049, 0062, 0050
Mating connector: 2.54mm IDC socket and ribbon cable assembly
Custom options: Latch direction, pin count, housing height and plating review

For a faster quote

Share a drawing or product photo if available.
Tell us the required pitch, pin count, mounting style and quantity.
We will confirm dimensions and customization options with you.

Available product variants3 catalog options

Code	Professional English Name	Pitch	Rows / Positions	Mounting	Height	Drawing
0049	2.54mm Vertical DIP Ejector Header Connector, Dual Row	2.54mm	Dual row / By drawing	Vertical DIP, Dual Row	Customizable by drawing/sample	Request drawing

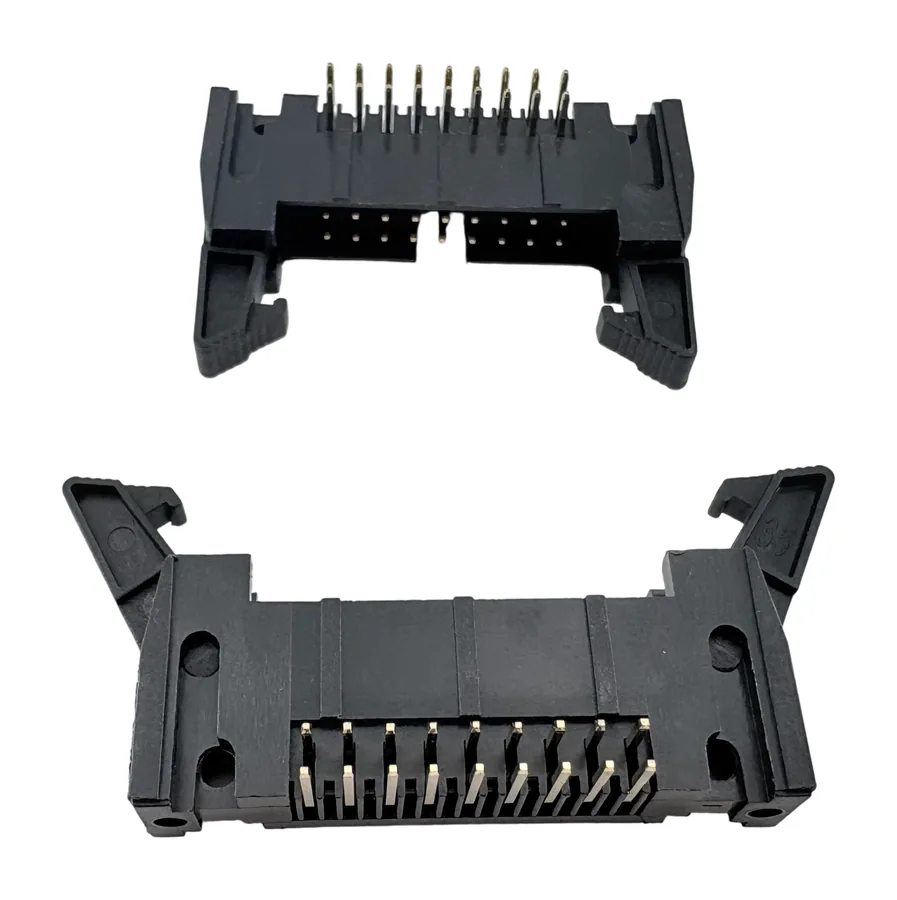

0062	2.54mm Right Angle Ejector Header Connector, Dual Row	2.54mm	Dual row / By drawing	Right Angle Through-Hole, Dual Row	Customizable by drawing/sample	Request drawing

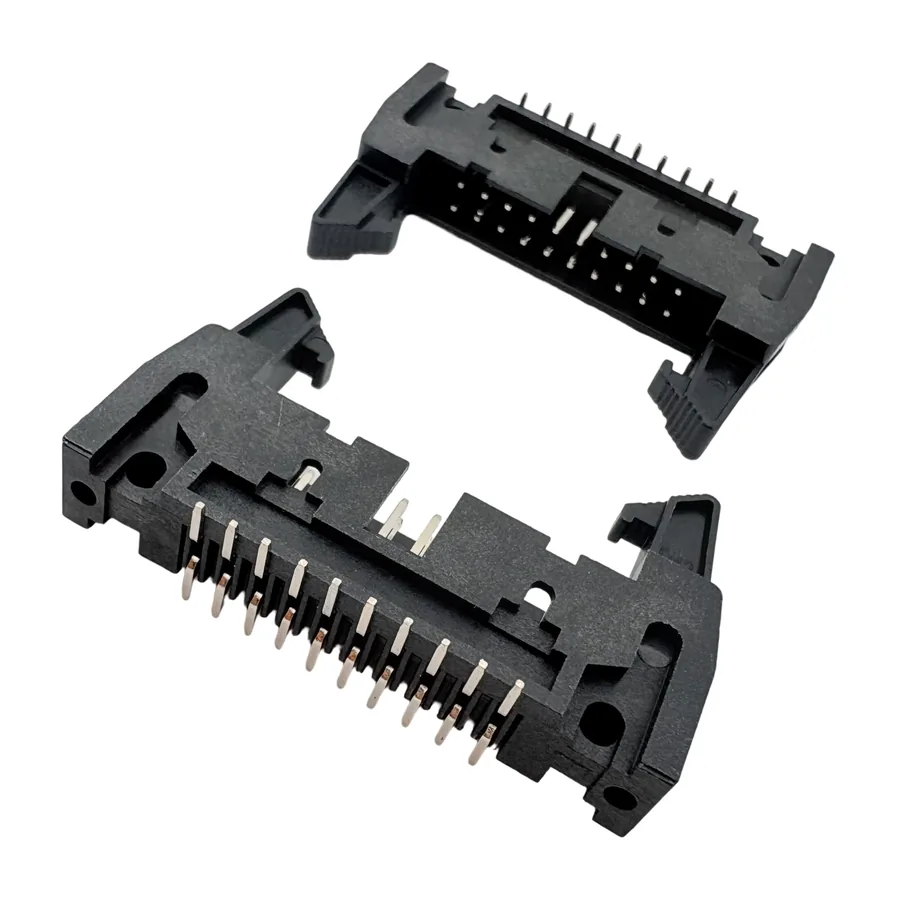

0050	2.54mm SMT Ejector Header Connector, Dual Row	2.54mm	Dual row / By drawing	SMT, Dual Row	Customizable by drawing/sample	Request drawing

Get 2D drawing or send RFQ

Request the drawing for a selected code, or send an RFQ for pricing and customization.

Get 2D drawing RFQ quote

Related RFQ guides

Specification guides for this connector

Box header vs ejector header selection guide Compare standard shrouded headers and latch/ejector structures. Box header keying and orientation guide Check key notch, pin 1 position and IDC cable exit direction. IDC ribbon cable connector guide Review IDC socket, ribbon cable and mating header details together.

Can this 2.54mm ejector header be matched with an IDC cable?

Yes. Kirision can review the mating IDC socket, ribbon cable direction and latch structure by drawing or sample.

What information is needed for quotation?

Provide pitch, positions, mounting style, latch direction, drawing or sample photo, quantity and plating requirement.

RFQ quote Get 2D drawing View Box Header series Back to catalog Custom OEM/ODM support

Connector Specification Review

For this connector, confirm pitch, rows, positions, mounting style, orientation, material, plating, packaging and mating connector before sample approval or production quotation.

Pitch	Confirm by drawing
Rows	Single row, dual row or custom
Positions	Custom pin count available
Mounting Style	Through-hole, SMT or right-angle options
Orientation	Straight or right angle
Insulator Material	PBT, PA6T or project-specified insulator
Contact Plating	Tin, gold flash or custom plating
Current Rating	Confirm by specification
Voltage Rating	Confirm by specification
Operating Temperature	Confirm by material and application

Files for Faster Quotation

Send PDF drawing, DWG, STEP, BOM, sample photo, target quantity and application notes. Kirision will review manufacturability, custom options, sample availability, MOQ and lead time.
