2.54mm Box Header Connector

2.54mm box header connector series for IDC ribbon cable and PCB control board projects. Local catalog coverage includes vertical DIP, right-angle through-hole and SMT structures, with 2x3P to 2x40P options reviewed by drawing.

Get 2D drawing RFQ quote View Box Header series

2.54mm Vertical DIP Box Header Connector, Dual Row, 2x3P to 2x40P product photo by Kirision — Product example shown. Contact us for the required pin count and dimensions.

Available specifications

Product type: Box header connector
Pitch: 2.54mm
Positions: 2x3P to 2x40P options
Rows: Dual-row options
Mounting style: Vertical DIP, right-angle through-hole and SMT
Catalog codes: 0074, 0076, 0073
Plastic height: H8.9 / H6.6 options by drawing
Custom options: Pin count, keying direction, housing height and plating review

For a faster quote

Share a drawing or product photo if available.
Tell us the required pitch, pin count, mounting style and quantity.
We will confirm dimensions and customization options with you.

Available product variants3 catalog options

Code	Professional English Name	Pitch	Rows / Positions	Mounting	Height	Drawing
0074	2.54mm Vertical DIP Box Header Connector, Dual Row, 2x3P to 2x40P	2.54mm	Dual row / 2x3P to 2x40P	Vertical DIP	Customizable by drawing/sample	Request drawing

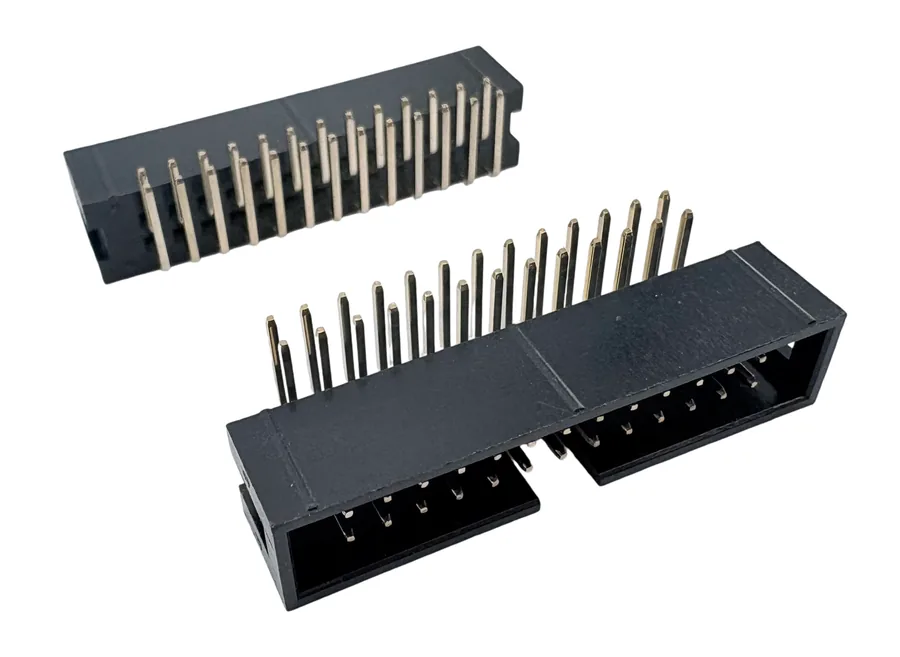

0076	2.54mm Right Angle Box Header Connector, Dual Row, 2x3P to 2x40P	2.54mm	Dual row / 2x3P to 2x40P	Right Angle Through-Hole	Customizable by drawing/sample	Request drawing

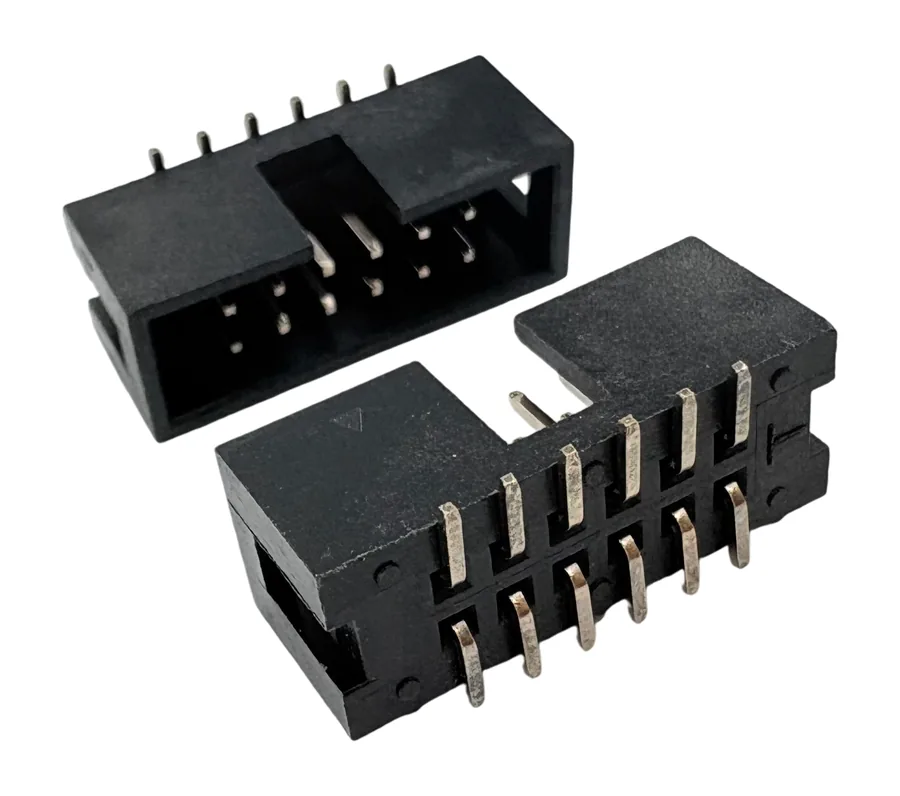

0073	2.54mm SMT Box Header Connector, Dual Row, 2x3P to 2x40P	2.54mm	Dual row / 2x3P to 2x40P	SMT	Customizable by drawing/sample	Request drawing

Get 2D drawing or send RFQ

Request the drawing for a selected code, or send an RFQ for pricing and customization.

Get 2D drawing RFQ quote

Related RFQ guides

Specification guides for this connector

Box header vs ejector header selection guide Compare standard shrouded headers and latch/ejector structures. Box header keying and orientation guide Check key notch, pin 1 position and IDC cable exit direction. IDC ribbon cable connector guide Review IDC socket, ribbon cable and mating header details together.

What 2.54mm box header structures are covered?

The current catalog covers vertical DIP, right-angle through-hole and SMT 2.54mm box header connector structures.

What should I send for a 2.54mm box header RFQ?

Send pitch, positions, orientation, mating IDC socket, drawing or sample photo, quantity and plating requirement.

RFQ quote Get 2D drawing View Box Header series Back to catalog Custom OEM/ODM support

Connector Specification Review

For this connector, confirm pitch, rows, positions, mounting style, orientation, material, plating, packaging and mating connector before sample approval or production quotation.

Pitch	Confirm by drawing
Rows	Single row, dual row or custom
Positions	Custom pin count available
Mounting Style	Through-hole, SMT or right-angle options
Orientation	Straight or right angle
Insulator Material	PBT, PA6T or project-specified insulator
Contact Plating	Tin, gold flash or custom plating
Current Rating	Confirm by specification
Voltage Rating	Confirm by specification
Operating Temperature	Confirm by material and application

Files for Faster Quotation

Send PDF drawing, DWG, STEP, BOM, sample photo, target quantity and application notes. Kirision will review manufacturability, custom options, sample availability, MOQ and lead time.
