1.27mm Pin Header Connector
1.27mm pin header connector for compact PCB board-to-board and embedded electronics projects. Kirision can review single-row, double-row, DIP, right-angle and SMT structures by drawing or sample.
Engineering CAD3D model available on request
Tell us the required pitch, rows, pin count and key dimensions.
Request 3D ModelAvailable specifications
- Product type
- Pin header connector
- Pitch
- 1.27mm
- Rows
- Single-row and double-row options
- Positions
- 1x1P to 2x50P options
- Mounting style
- DIP, right-angle and SMT options
- Orientation
- Straight or right-angle by drawing
- Custom options
- Pin count, tail length, plastic height and plating review
For a faster quote
- Share a drawing or product photo if available.
- Tell us the required pitch, pin count, mounting style and quantity.
- We will confirm dimensions and customization options with you.
Build your RFQ specification
Select the required connector format. This creates an RFQ specification for engineering review; it does not calculate an online price.
Choose pitch and rows to see the supported catalog pin range. Special multi-row or out-of-range designs require drawing review.
Available product variants6 catalog options
| Photo | Code | Professional English Name | Pitch | Rows / Positions | Mounting | Height | Drawing |
|---|---|---|---|---|---|---|---|
|
|

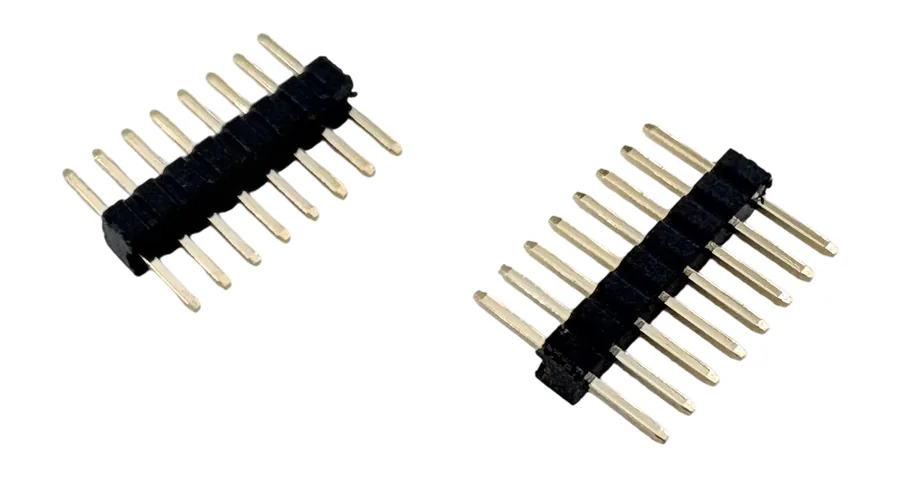

0109 | 1.27mm Vertical DIP Pin Header Connector, Single Row, 1x1P to 1x50P | 1.27mm | Single row / 1x1P to 1x50P | Vertical DIP, Single Row | Customizable by drawing/sample | Request drawing |
|

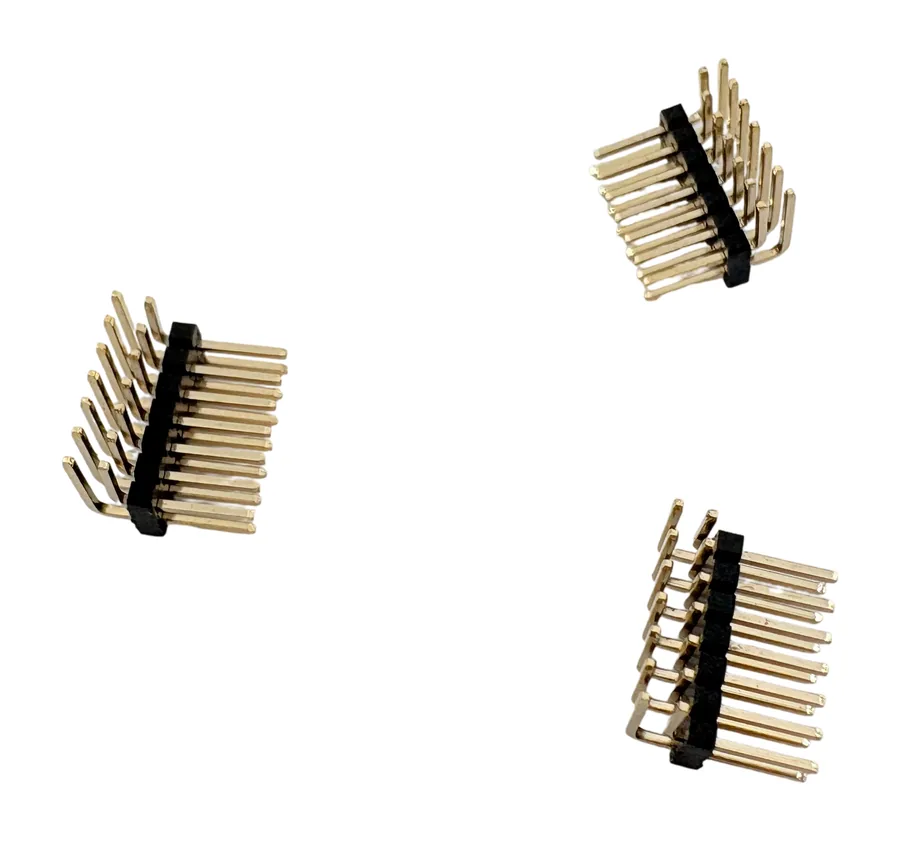

0108 | 1.27mm Right Angle Pin Header Connector, Single Row, 1x1P to 1x50P | 1.27mm | Single row / 1x1P to 1x50P | Right Angle Through-Hole, Single Row | Customizable by drawing/sample | Request drawing |
|

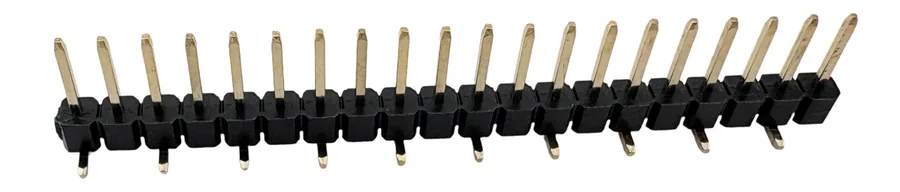

0078 | 1.27mm Staggered SMT Pin Header Connector, Single Row, 1x1P to 1x50P | 1.27mm | Single row / 1x1P to 1x50P | Staggered SMT | Customizable by drawing/sample | Request drawing |
|

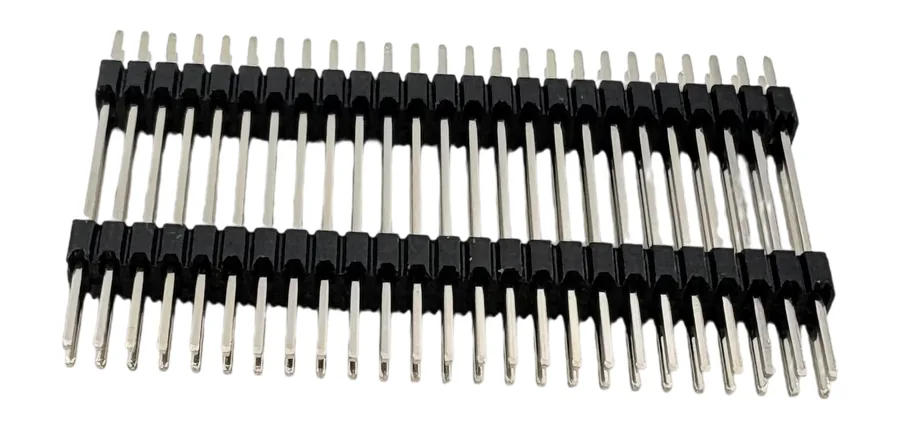

0027 | 1.27mm Vertical DIP Pin Header Connector, Dual Row, 2x1P to 2x50P | 1.27mm | Dual row / 2x1P to 2x50P | Vertical DIP, Dual Insulator, Dual Row | Customizable by drawing/sample | Request drawing |
|
0110 | 1.27mm Right Angle Pin Header Connector, Dual Row, 2x1P to 2x50P | 1.27mm | Dual row / 2x1P to 2x50P | Right Angle Through-Hole, Dual Row | Customizable by drawing/sample | Request drawing |
|
0125 | 1.27mm Vertical SMT Pin Header Connector, Dual Row, 2x1P to 2x50P | 1.27mm | Dual row / 2x1P to 2x50P | Vertical SMT | Customizable by drawing/sample | Request drawing |
Get 2D drawing or send RFQ
Request the drawing for a selected code, or send an RFQ for pricing and customization.
Related RFQ guides
Specification guides for this connector
Pin header tail length and plastic height RFQ guide
Use this when PCB thickness, solder tail and mating height are the main uncertainty.
Match pin header and female header before RFQ
Check mating height, insertion depth and row layout before sample confirmation.
2.54mm pin header selection guide
Compare rows, positions, mounting style, height, tail length and plating.
Can Kirision customize the tail length for this 1.27mm pin header?
Yes. Tail length can be reviewed from drawing, sample photo or PCB assembly requirement.
What pitch and row details should I send?
Send pitch, row count, positions, mounting style, tail length, plating and target quantity.
