2.00mm Pin Header Connector
2.00mm pin header connector series for PCB board-to-board and embedded control projects. Catalog coverage includes single-row, dual-row and triple-row options with vertical DIP, right-angle, vertical SMT and horizontal SMT structures.
Engineering CADDownload STEP model
STEP AP214
Final dimensions are confirmed by drawing.
Need a different configuration? Request a 3D modelAvailable specifications
- Product type
- Pin header connector
- Pitch
- 2.00mm
- Positions
- 1x1P to 3x40P options
- Rows
- Single-row, dual-row and triple-row options
- Mounting style
- Vertical DIP, right-angle, vertical SMT and horizontal SMT
- Catalog codes
- 0111, 0113, 0120, 0112, 0114, 00006, 0124, 0136
- Plastic height
- H1.0 / H1.5 / H2.0 / H2.5 / H3.0 options
- Custom options
- Pin count, tail length, plastic height and plating review
For a faster quote
- Share a drawing or product photo if available.
- Tell us the required pitch, pin count, mounting style and quantity.
- We will confirm dimensions and customization options with you.
Build your RFQ specification
Select the required connector format. This creates an RFQ specification for engineering review; it does not calculate an online price.
Choose pitch and rows to see the supported catalog pin range. Special multi-row or out-of-range designs require drawing review.
Available product variants8 catalog options
| Photo | Code | Professional English Name | Pitch | Rows / Positions | Mounting | Height | Drawing |
|---|---|---|---|---|---|---|---|
|
|

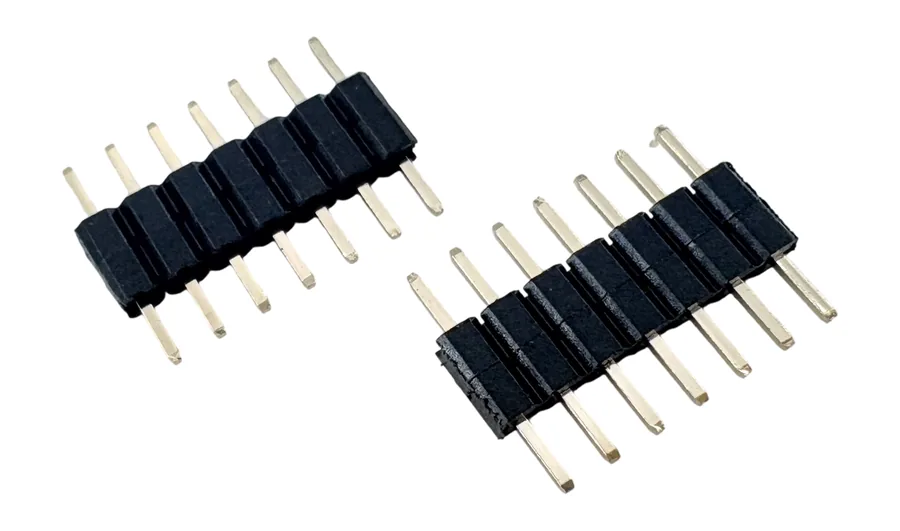

0111 | 2.00mm Vertical DIP Pin Header Connector, Single Row, 1x1P to 1x40P | 2.00mm | Single row / 1x1P to 1x40P | Vertical DIP, Single Row | Customizable by drawing/sample | Request drawing |
|

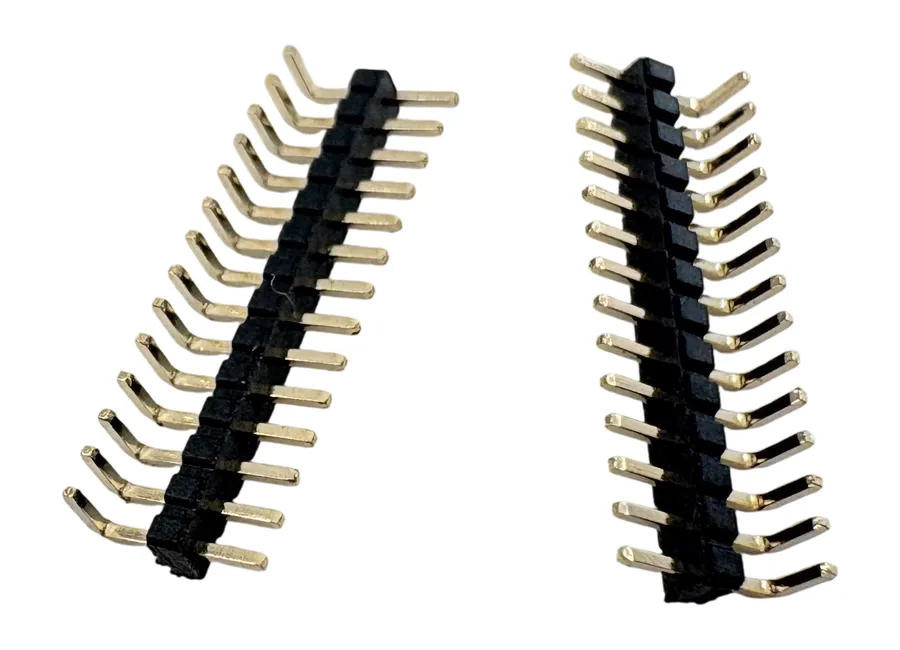

0113 | 2.00mm Right Angle Pin Header Connector, Single Row, 1x1P to 1x40P | 2.00mm | Single row / 1x1P to 1x40P | Right Angle Through-Hole, Single Row | Customizable by drawing/sample | Request drawing |
|

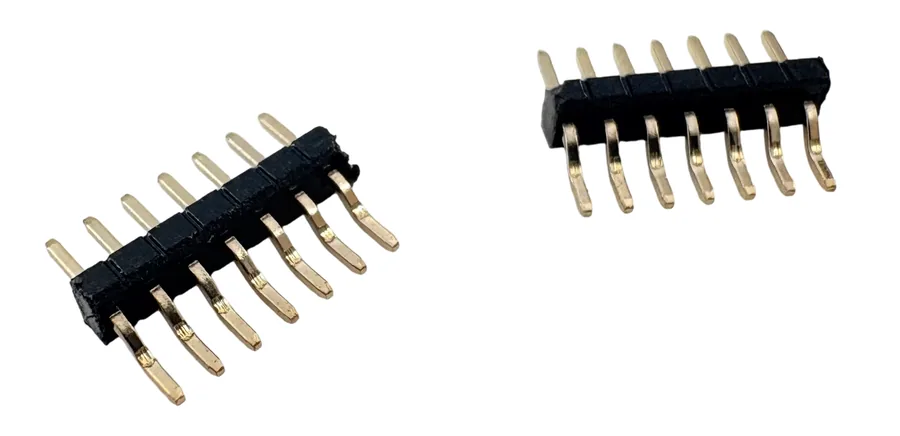

0120 | 2.00mm Horizontal SMT Pin Header Connector, Single Row, 1x1P to 1x40P | 2.00mm | Single row / 1x1P to 1x40P | Horizontal SMT | Customizable by drawing/sample | Request drawing |
|

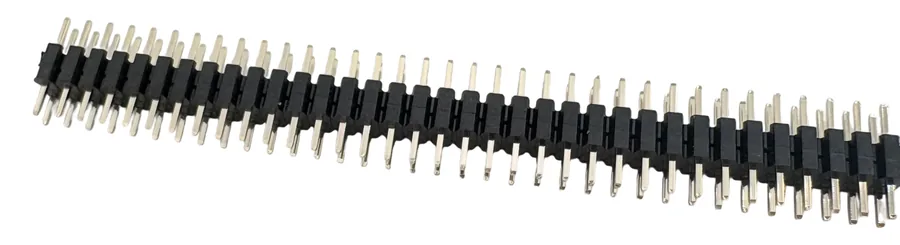

0112 | 2.00mm Vertical DIP Pin Header Connector, Dual Row, 2x1P to 2x40P | 2.00mm | Dual row / 2x1P to 2x40P | Vertical DIP, Dual Row | Customizable by drawing/sample | Request drawing |
|

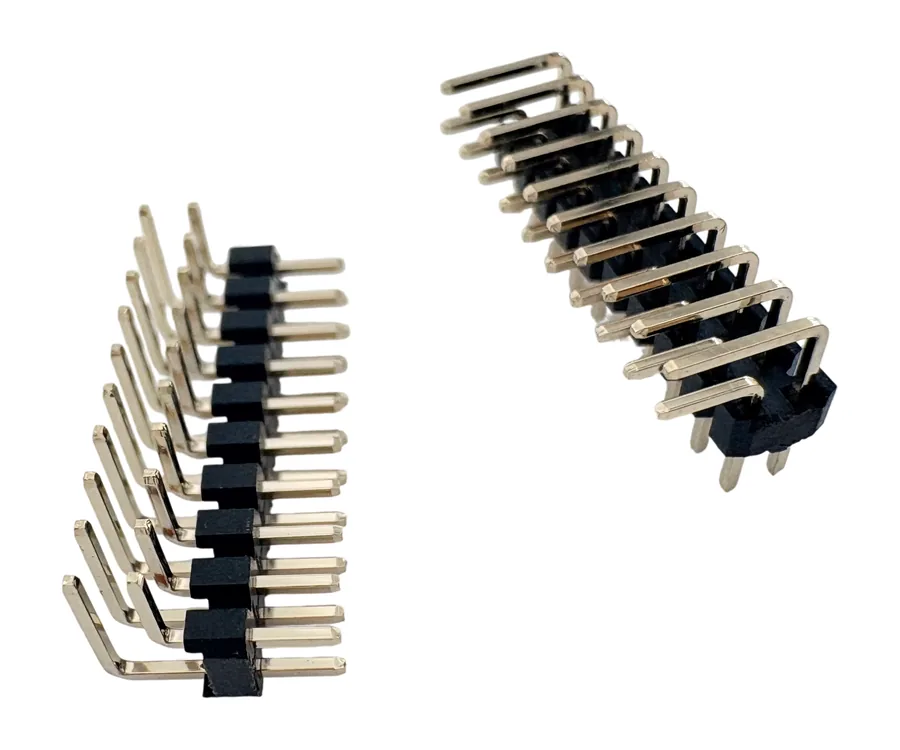

0114 | 2.00mm Right Angle Pin Header Connector, Dual Row, 2x1P to 2x40P | 2.00mm | Dual row / 2x1P to 2x40P | Right Angle Through-Hole, Dual Row | Customizable by drawing/sample | Request drawing |
|

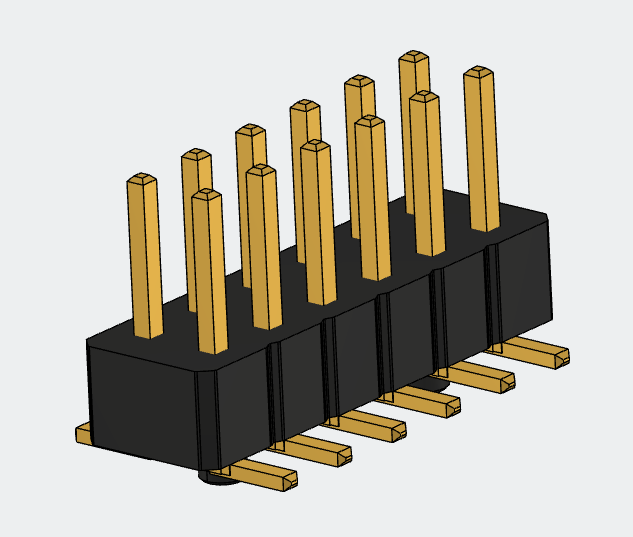

00006 | 2.00mm Vertical SMT Pin Header Connector, Dual Row, 2x1P to 2x40P | 2.00mm | Dual row / 2x1P to 2x40P | Vertical SMT | Customizable by drawing/sample | Request drawing |
|

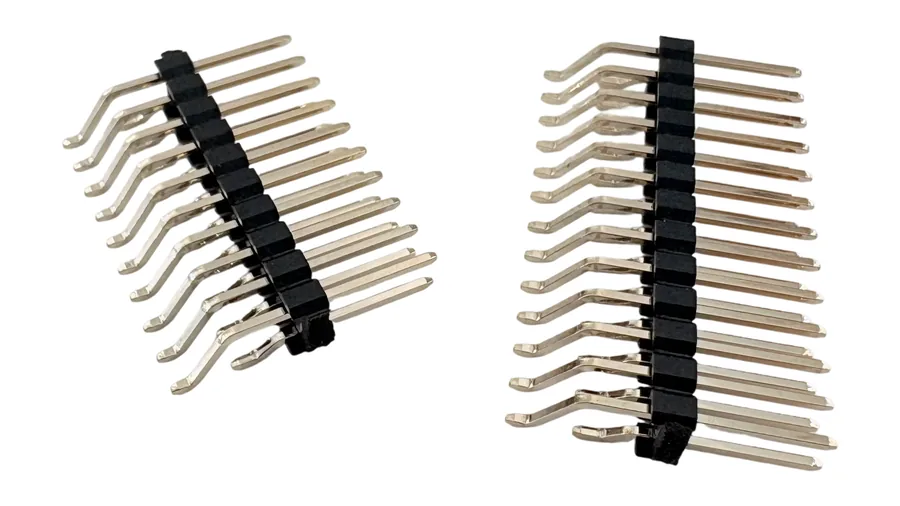

0124 | 2.00mm Horizontal SMT Pin Header Connector, Dual Row, 2x1P to 2x40P | 2.00mm | Dual row / 2x1P to 2x40P | Horizontal SMT | Customizable by drawing/sample | Request drawing |
|

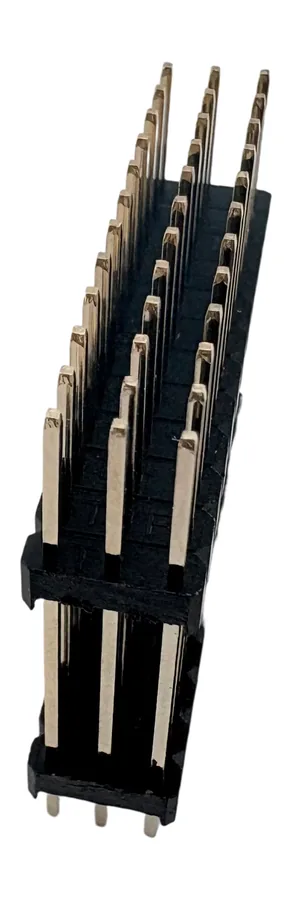

0136 | 2.00mm Vertical DIP Pin Header Connector, Triple Row, 3x1P to 3x40P | 2.00mm | Triple row / 3x1P to 3x40P | Vertical DIP, Triple Row | Customizable by drawing/sample | Request drawing |
