0.8mm Pin Header Connector

0.8mm pin header connector series for compact PCB board-to-board applications. Kirision can review vertical DIP and SMT options, single-row or dual-row layouts, plastic height and plating by drawing or sample.

Get 2D drawing RFQ quote View Pin Header series

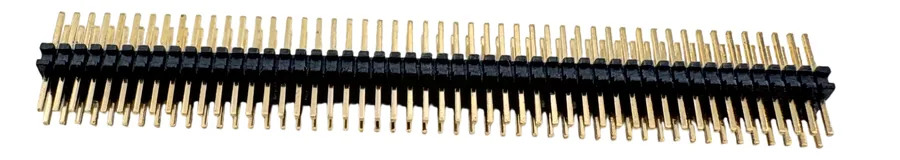

0.8mm Vertical DIP Pin Header Connector, Dual Row, 1x1P to 1x50P product photo by Kirision — Product example shown. Contact us for the required pin count and dimensions.

Available specifications

Product type: Pin header connector
Pitch: 0.8mm
Positions: 1x1P to 1x50P options
Rows: Single-row and dual-row review
Mounting style: Vertical DIP and SMT options
Catalog codes: 0119 plus SMT catalog row
Plastic height: H1.38 / H1.4 options
Custom options: Pin count, tail length, plastic height and plating review

For a faster quote

Share a drawing or product photo if available.
Tell us the required pitch, pin count, mounting style and quantity.
We will confirm dimensions and customization options with you.

Build your RFQ specification

Select the required connector format. This creates an RFQ specification for engineering review; it does not calculate an online price.

Choose pitch and rows to see the supported catalog pin range. Special multi-row or out-of-range designs require drawing review.

Pitch

Rows

Positions per row

Total pin count Calculated automatically

Mounting

Mating pin length

Plastic height

Solder tail length

Plating

Target quantity

Final dimensions, tolerances, plating and packaging are confirmed by drawing, sample or approved specification.

Available product variants2 catalog options

Photo	Code	Professional English Name	Pitch	Rows / Positions	Mounting	Height	Drawing
	0119	0.8mm Vertical DIP Pin Header Connector, Dual Row, 1x1P to 1x50P	0.8mm	Dual row / 1x1P to 1x50P	Vertical DIP, Dual Row	Customizable by drawing/sample	Request drawing
Series ref.	By drawing	0.8mm SMT Pin Header Connector, Single Row, 1x1P to 1x50P	0.8mm	Single row / 1x1P to 1x50P	SMT	Customizable by drawing/sample	Request drawing

Get 2D drawing or send RFQ

Request the drawing for a selected code, or send an RFQ for pricing and customization.

Get 2D drawing RFQ quote

Related RFQ guides

Specification guides for this connector

Pin header tail length and plastic height RFQ guide Use this when PCB thickness, solder tail and mating height are the main uncertainty. Match pin header and female header before RFQ Check mating height, insertion depth and row layout before sample confirmation. 2.54mm pin header selection guide Compare rows, positions, mounting style, height, tail length and plating.

When should I use a 0.8mm pin header?

Use it when the PCB design needs a compact board-to-board connector and the assembly can support tighter pitch handling.

Can Kirision review SMT and DIP versions?

Yes. Send the drawing or sample photo so mounting style, pin count and plastic height can be confirmed.

RFQ quote Get 2D drawing View Pin Header series Back to catalog Custom OEM/ODM support

Connector Specification Review

For this connector, confirm pitch, rows, positions, mounting style, orientation, material, plating, packaging and mating connector before sample approval or production quotation.

Pitch	Confirm by drawing
Rows	Single row, dual row or custom
Positions	Custom pin count available
Mounting Style	Through-hole, SMT or right-angle options
Orientation	Straight or right angle
Insulator Material	PBT, PA6T or project-specified insulator
Contact Plating	Tin, gold flash or custom plating
Current Rating	Confirm by specification
Voltage Rating	Confirm by specification
Operating Temperature	Confirm by material and application

Files for Faster Quotation

Send PDF drawing, DWG, STEP, BOM, sample photo, target quantity and application notes. Kirision will review manufacturability, custom options, sample availability, MOQ and lead time.
