2.00mm Female Header Connector
2.0mm female header connector for PCB socket and board stacking applications. Kirision can review mating height, row count, DIP, laydown or right-angle structures and plating before RFQ.
Engineering CADDownload STEP model
STEP AP214
Final dimensions are confirmed by drawing.
Need a different configuration? Request a 3D modelAvailable specifications
- Product type
- Female header connector
- Pitch
- 2.00mm
- Rows
- Single-row and double-row options
- Mounting style
- DIP, laydown and right-angle options
- Plastic height
- H2.0 to H7.2 options
- Mating review
- Pin header mating fit and stack height
- Custom options
- Height, row count, positions and plating review
For a faster quote
- Share a drawing or product photo if available.
- Tell us the required pitch, pin count, mounting style and quantity.
- We will confirm dimensions and customization options with you.
Build your RFQ specification
Select the required connector format. This creates an RFQ specification for engineering review; it does not calculate an online price.
Choose pitch and rows to see the supported catalog pin range. Special multi-row or out-of-range designs require drawing review.
Available product variants9 catalog options
| Photo | Code | Professional English Name | Pitch | Rows / Positions | Mounting | Height | Drawing |
|---|---|---|---|---|---|---|---|
|
|

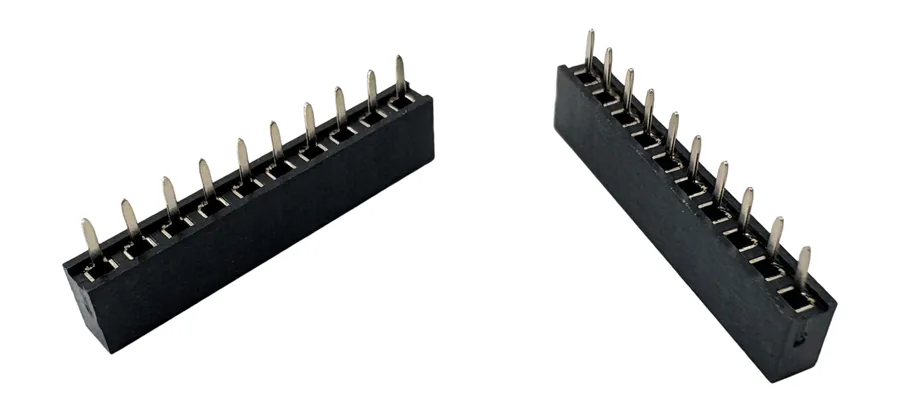

0132 | 2.00mm Vertical DIP Female Header Connector, Single Row, 1x2P to 1x40P | 2.00mm | Single row / 1x2P to 1x40P | Vertical DIP, Single Row | Customizable by drawing/sample | Request drawing |
|

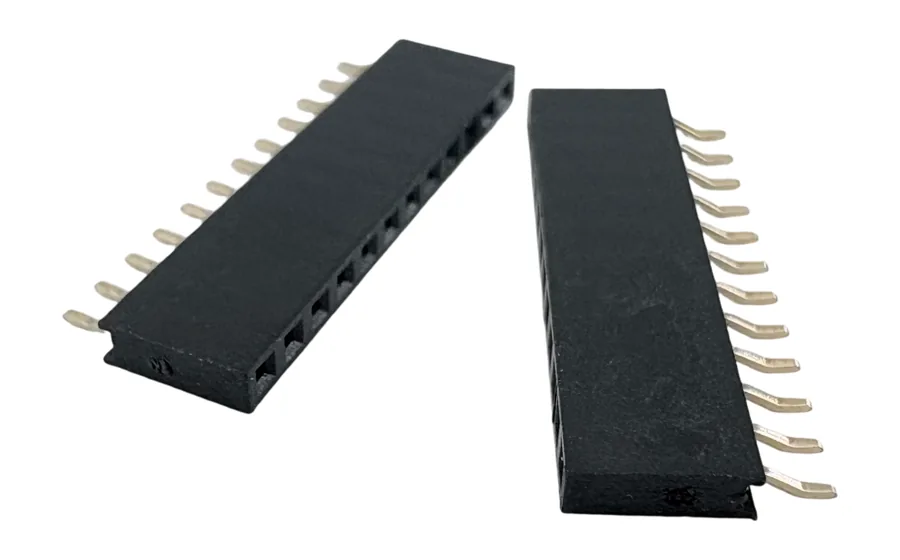

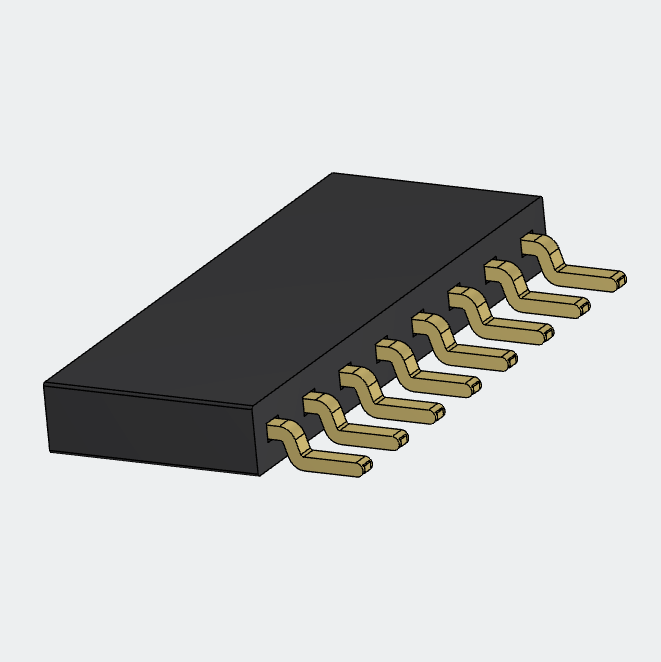

0021 | 2.00mm Horizontal SMT Female Header Connector, Single Row, 1x2P to 1x40P | 2.00mm | Single row / 1x2P to 1x40P | Horizontal SMT | Customizable by drawing/sample | Request drawing |
|

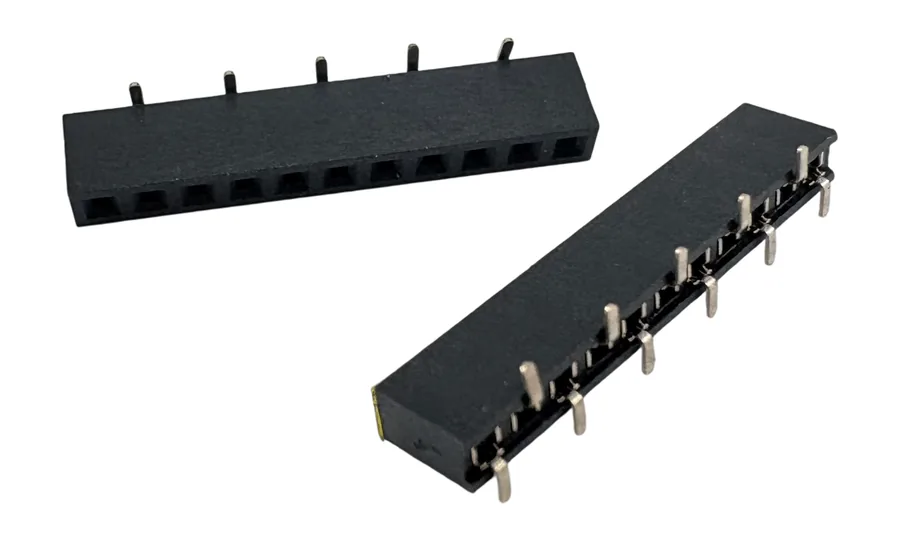

0018 | 2.00mm Staggered SMT Female Header Connector, Single Row, 1x2P to 1x40P | 2.00mm | Single row / 1x2P to 1x40P | Staggered SMT | Customizable by drawing/sample | Request drawing |
|

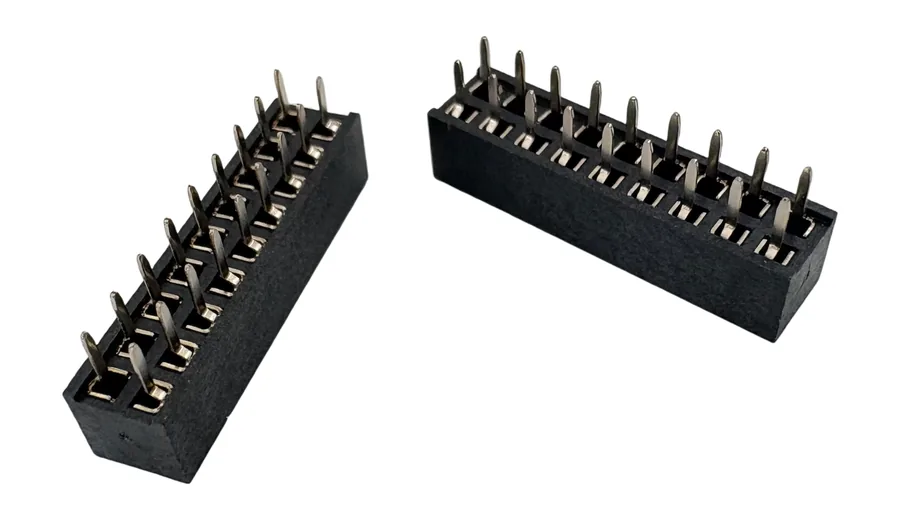

0133 | 2.00mm Vertical DIP Female Header Connector, Dual Row, 2x2P to 2x40P | 2.00mm | Dual row / 2x2P to 2x40P | Vertical DIP, Dual Row | Customizable by drawing/sample | Request drawing |
|

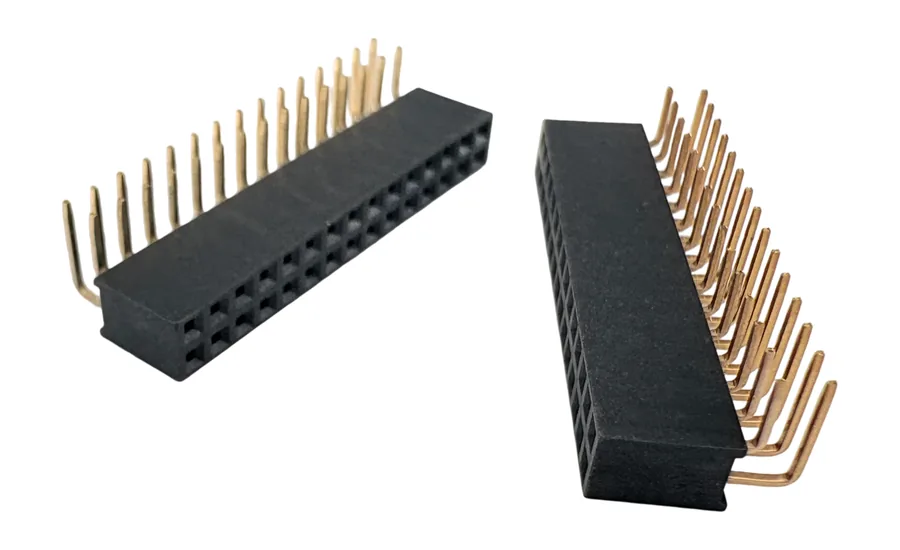

0026 | 2.00mm Right Angle Female Header Connector, Dual Row, 2x2P to 2x40P | 2.00mm | Dual row / 2x2P to 2x40P | Right Angle Through-Hole, Dual Row | Customizable by drawing/sample | Request drawing |
|

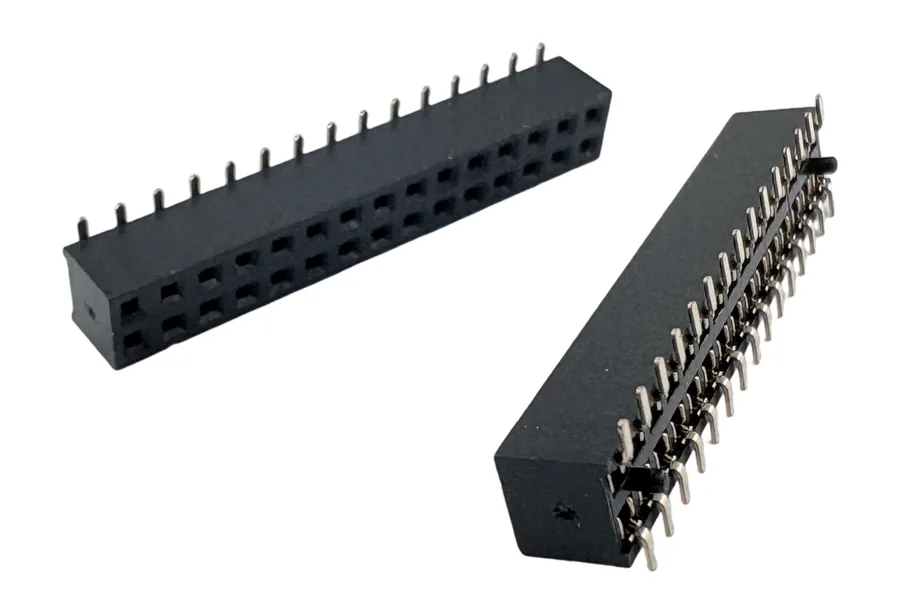

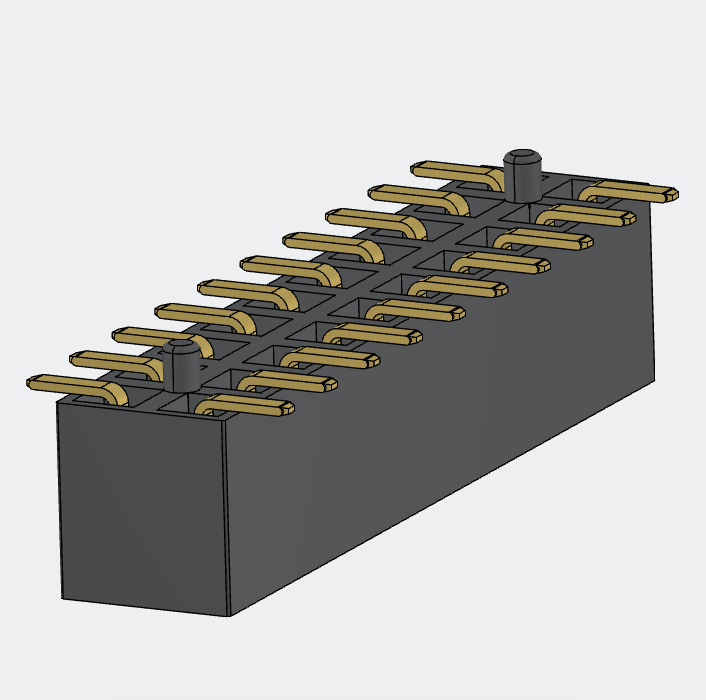

0024 | 2.00mm Vertical SMT Female Header Connector, Dual Row, 2x2P to 2x40P | 2.00mm | Dual row / 2x2P to 2x40P | Vertical SMT | Customizable by drawing/sample | Request drawing |
|

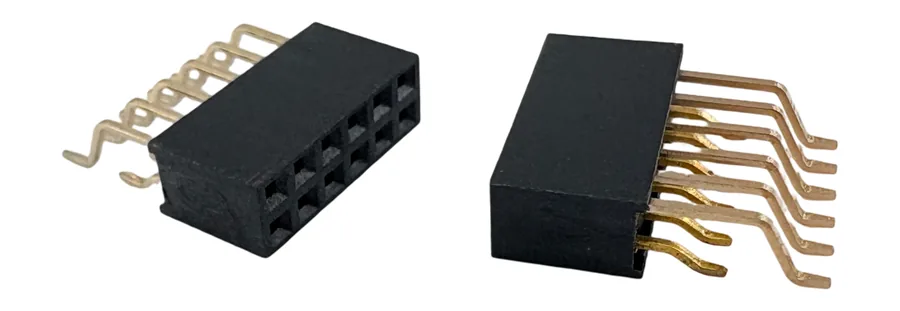

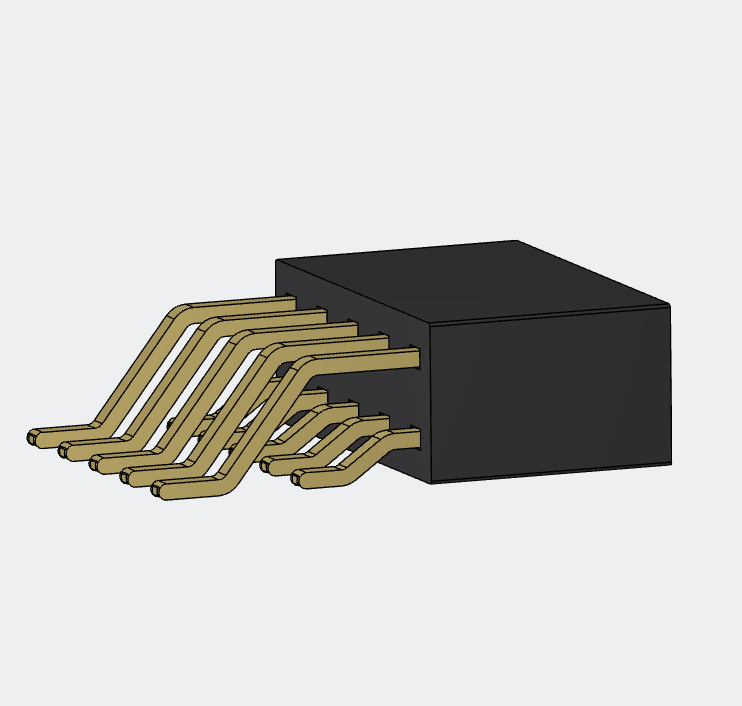

0019 | 2.00mm Horizontal SMT Female Header Connector, Dual Row, 2x2P to 2x40P | 2.00mm | Dual row / 2x2P to 2x40P | Horizontal SMT | Customizable by drawing/sample | Request drawing |
|

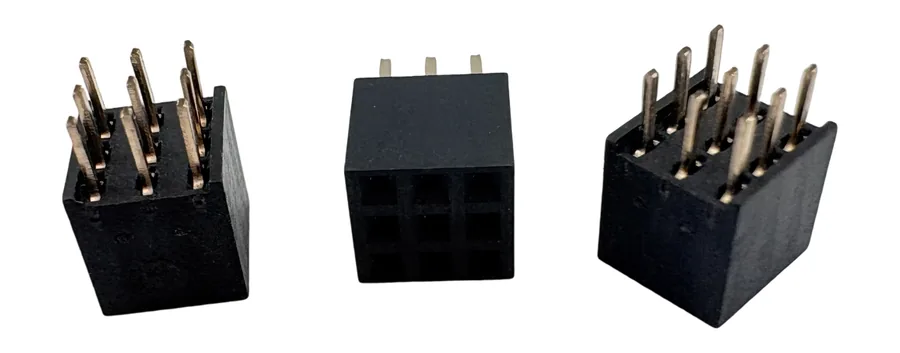

0016 | 2.00mm Female Header Connector, Triple Row, 2x2P to 2x40P | 2.00mm | Triple row / 2x2P to 2x40P | Triple Row | Customizable by drawing/sample | Request drawing |
|
|
0016 | 2.00mm Female Header Connector, Dual Row, 2x2P to 2x40P | 2.00mm | Dual row / 2x2P to 2x40P | By Drawing | Customizable by drawing/sample | Request drawing |
