Product example shown. Contact us for the required pin count and dimensions.
Female Header product RFQ
1.27mm Female Header Connector
1.27mm female header connector series for compact board stacking and socket applications. Catalog coverage includes single-row, dual-row, DIP, right-angle, vertical SMT and horizontal SMT structures.
Engineering CAD3D model available on request
Tell us the required pitch, rows, pin count and key dimensions.
Request 3D ModelAvailable specifications
- Product type
- Female header connector
- Pitch
- 1.27mm
- Rows
- Single-row and dual-row options
- Mounting style
- DIP, right-angle, vertical SMT and horizontal SMT
- Catalog codes
- 0103, 0131, 0101, 0135, 0102
- Mating review
- Pin header fit, insertion depth and stack height
- Custom options
- Positions, total height, row count and plating review
For a faster quote
- Share a drawing or product photo if available.
- Tell us the required pitch, pin count, mounting style and quantity.
- We will confirm dimensions and customization options with you.
Build your RFQ specification
Select the required connector format. This creates an RFQ specification for engineering review; it does not calculate an online price.
Choose pitch and rows to see the supported catalog pin range. Special multi-row or out-of-range designs require drawing review.
Available product variants6 catalog options
| Photo | Code | Professional English Name | Pitch | Rows / Positions | Mounting | Height | Drawing |
|---|---|---|---|---|---|---|---|
|
|
0103 | 1.27mm Vertical DIP Female Header Connector, Single Row, 1x2P to 1x50P | 1.27mm | Single row / 1x2P to 1x50P | Vertical DIP, Single Row | Customizable by drawing/sample | Request drawing |
|
0131 | 1.27mm Right Angle Female Header Connector, Single Row, 1x2P to 1x50P | 1.27mm | Single row / 1x2P to 1x50P | Right Angle Through-Hole, Single Row | Customizable by drawing/sample | Request drawing |
|
0101 | 1.27mm Horizontal SMT Female Header Connector, Single Row, 1x2P to 1x50P | 1.27mm | Single row / 1x2P to 1x50P | Horizontal SMT | Customizable by drawing/sample | Request drawing |
|
0135 | 1.27mm Vertical DIP Female Header Connector, Dual Row, 2x2P | 1.27mm | Dual row / 2x2P | Vertical DIP, Dual Row | Customizable by drawing/sample | Request drawing |
|

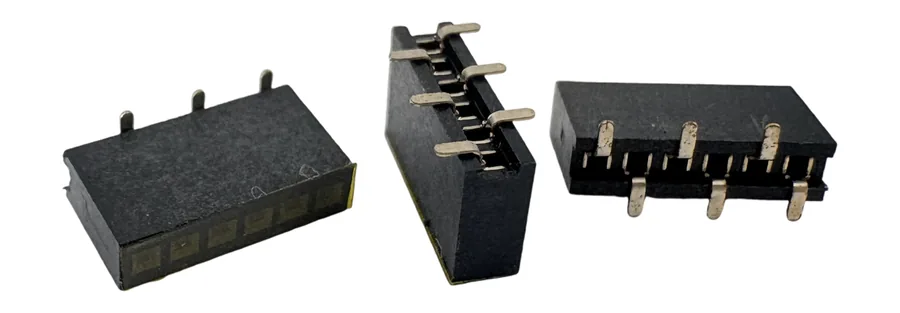

0102 | 1.27mm Vertical SMT Female Header Connector, Dual Row, 2x2P to 2x50P | 1.27mm | Dual row / 2x2P to 2x50P | Vertical SMT | Customizable by drawing/sample | Request drawing |
|
Series ref.
|
By drawing | 1.27mm Female Header Connector | 1.27mm | By drawing / By drawing | By Drawing | Customizable by drawing/sample | Request drawing |
Get 2D drawing or send RFQ
Request the drawing for a selected code, or send an RFQ for pricing and customization.
Related RFQ guides
Specification guides for this connector
Match pin header and female header before RFQ
Use this guide to check board-to-board fit and mating connector details.
Pin header tail length and plastic height RFQ guide
Helpful when the mating pin header height or solder tail affects the female header choice.
2.54mm pin header selection guide
Reference guide for common mating pin header specification details.
Does Kirision support 1.27mm female header SMT structures?
Yes. Vertical SMT and horizontal SMT structures can be reviewed together with DIP and right-angle options.
What information is needed for stack-height review?
Provide mating pin header details, target board spacing, pitch, row count, positions and drawing if available.
