1.00mm Female Header Connector

1.00mm female header connector for compact PCB socket and board-stacking applications. Kirision can review dual-row SMT structure, mating pin header fit, plastic height and plating by drawing or sample.

Get 2D drawing RFQ quote View Female Header series

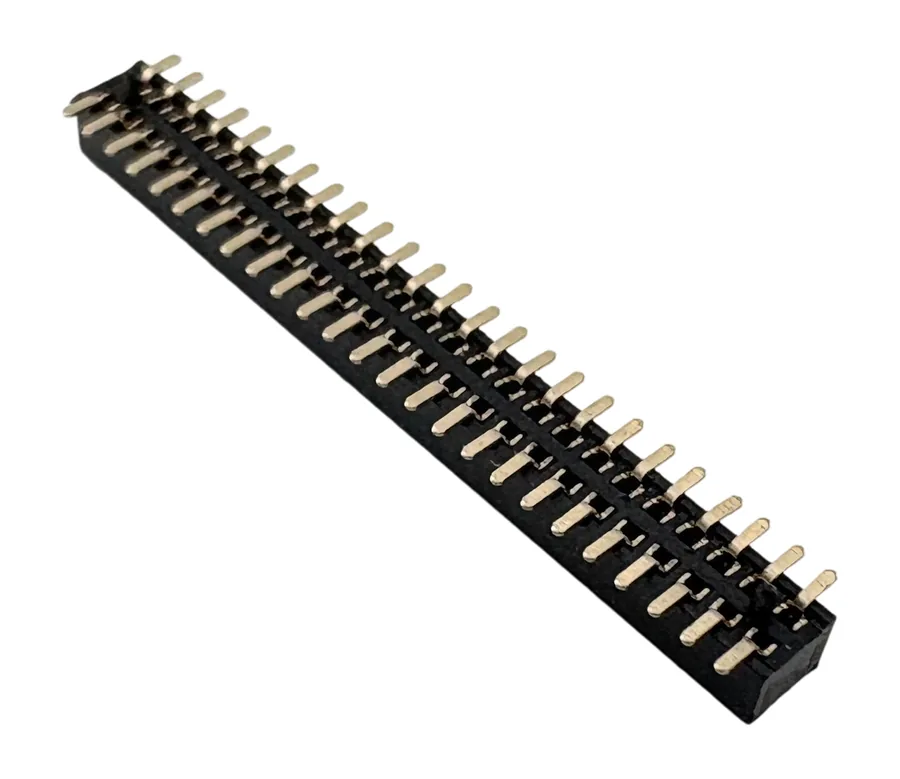

1.00mm SMT Female Header Connector, Dual Row, 2x2P to 2x50P product photo by Kirision — Product example shown. Contact us for the required pin count and dimensions.

Available specifications

Product type: Female header connector
Pitch: 1.00mm
Rows: Dual-row SMT catalog option
Mounting style: SMT
Catalog code: 0107
Mating review: 1.00mm pin header mating fit and stack height
Custom options: Positions, height, plating and packaging review

For a faster quote

Share a drawing or product photo if available.
Tell us the required pitch, pin count, mounting style and quantity.
We will confirm dimensions and customization options with you.

Build your RFQ specification

Select the required connector format. This creates an RFQ specification for engineering review; it does not calculate an online price.

Choose pitch and rows to see the supported catalog pin range. Special multi-row or out-of-range designs require drawing review.

Pitch

Rows

Positions per row

Total pin count Calculated automatically

Mounting

Mating pin length

Plastic height

Solder tail length

Plating

Target quantity

Final dimensions, tolerances, plating and packaging are confirmed by drawing, sample or approved specification.

Available product variants1 catalog options

Photo	Code	Professional English Name	Pitch	Rows / Positions	Mounting	Height	Drawing
	0107	1.00mm SMT Female Header Connector, Dual Row, 2x2P to 2x50P	1.00mm	Dual row / 2x2P to 2x50P	SMT, Dual Row	Customizable by drawing/sample	Request drawing

Get 2D drawing or send RFQ

Request the drawing for a selected code, or send an RFQ for pricing and customization.

Get 2D drawing RFQ quote

Related RFQ guides

Specification guides for this connector

Match pin header and female header before RFQ Use this guide to check board-to-board fit and mating connector details. Pin header tail length and plastic height RFQ guide Helpful when the mating pin header height or solder tail affects the female header choice. 2.54mm pin header selection guide Reference guide for common mating pin header specification details.

What is the main use for a 1.00mm female header?

It is used where compact PCB socket connection or board stacking requires a smaller pitch than 1.27mm or 2.00mm series.

What should I send for mating review?

Send the mating pin header drawing, stack-height target, PCB layout limit and quantity.

RFQ quote Get 2D drawing View Female Header series Back to catalog Custom OEM/ODM support

Connector Specification Review

For this connector, confirm pitch, rows, positions, mounting style, orientation, material, plating, packaging and mating connector before sample approval or production quotation.

Pitch	Confirm by drawing
Rows	Single row, dual row or custom
Positions	Custom pin count available
Mounting Style	Through-hole, SMT or right-angle options
Orientation	Straight or right angle
Insulator Material	PBT, PA6T or project-specified insulator
Contact Plating	Tin, gold flash or custom plating
Current Rating	Confirm by specification
Voltage Rating	Confirm by specification
Operating Temperature	Confirm by material and application

Files for Faster Quotation

Send PDF drawing, DWG, STEP, BOM, sample photo, target quantity and application notes. Kirision will review manufacturability, custom options, sample availability, MOQ and lead time.
