PH + Box Hybrid Connector OEM/ODM

Name: PH + Box Hybrid Connector OEM/ODM
SKU: ph-box-hybrid-connector

PH plus box hybrid connector OEM/ODM support for projects that need pin header and box housing structures adjusted by drawing. Kirision can review total height, DIP or SMT mounting and pin layout.

Get 2D drawing RFQ quote View Custom OEM/ODM series

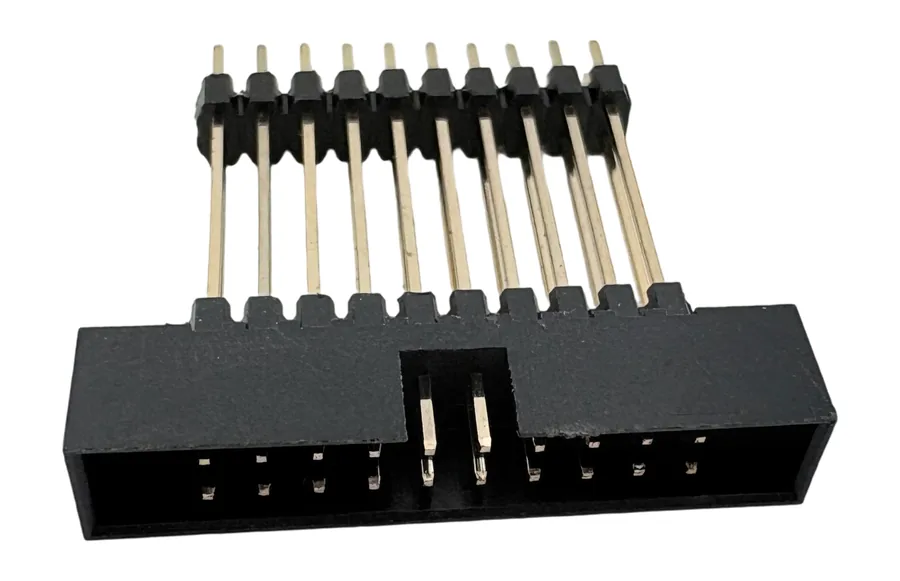

2.00mm Vertical DIP PH + Box Hybrid Connector product photo by Kirision — Representative Kirision product photo. Exact height, pin count and structure can be reviewed by drawing or sample.

Product specification review

Product type: Custom hybrid connector
Structure: Pin header plus box housing
Mounting style: DIP and SMT options
Total height: Customizable by drawing
OEM/ODM input: Drawing, sample photo, BOM, STEP, DWG or PDF
Custom options: Housing, height, pin layout, tail length and plating review

RFQ checklist

Send drawing, sample photo, BOM, STEP, DWG or PDF files when available.
Confirm pitch, rows, positions, mounting style, orientation, tail length, plastic height or total height and plating.
Share sample quantity, batch quantity, destination country and target lead time.
Plastic height or total height can be customized by drawing/sample for OEM/ODM RFQs.
Ask for ISO 9001 quality documentation or RoHS material review if required.

Catalog variants from Kirision product material

Code	Professional English Name	Pitch	Rows / Positions	Mounting	Height	Drawing
0038	2.00mm Vertical DIP PH + Box Hybrid Connector	2.00mm	By drawing / By drawing	Vertical DIP	Customizable by drawing/sample	Request drawing

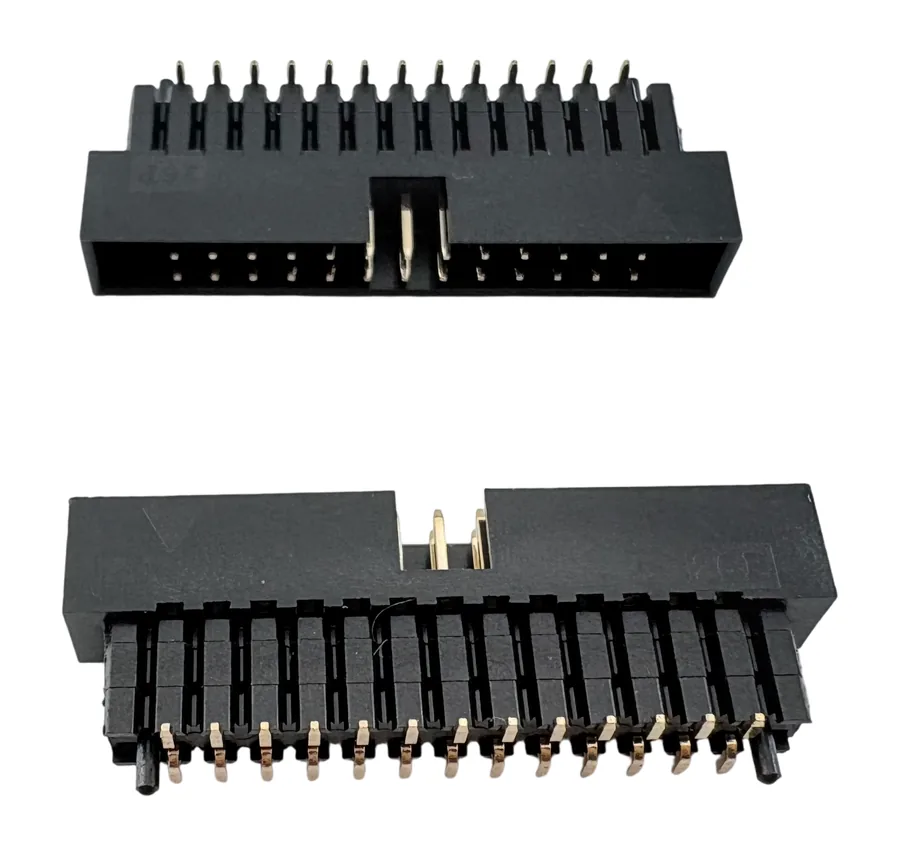

0064	2.00mm SMT PH + Box Hybrid Connector	2.00mm	By drawing / By drawing	SMT	Customizable by drawing/sample	Request drawing

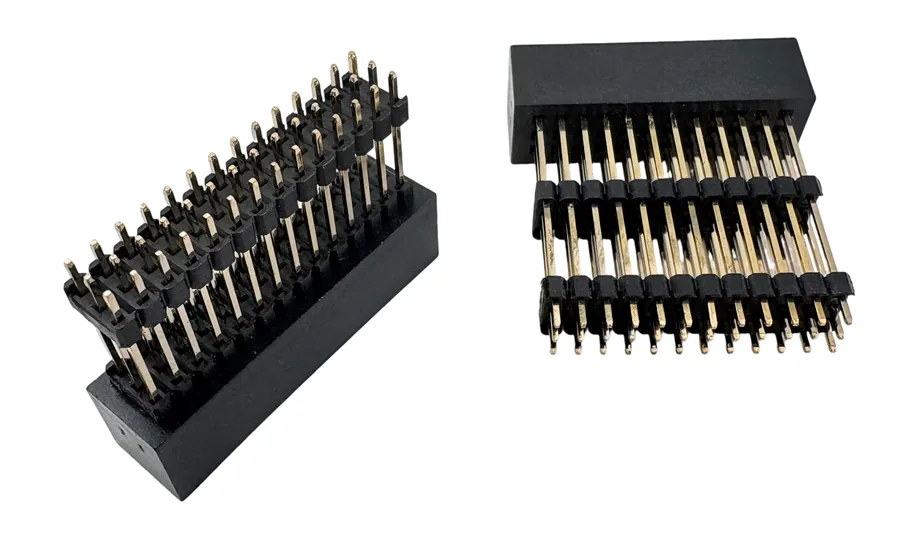

0116	2.54mm Vertical DIP PH + Box Hybrid Connector, Triple Row	2.54mm	Triple row / By drawing	Vertical DIP, Triple Row	Customizable by drawing/sample	Request drawing

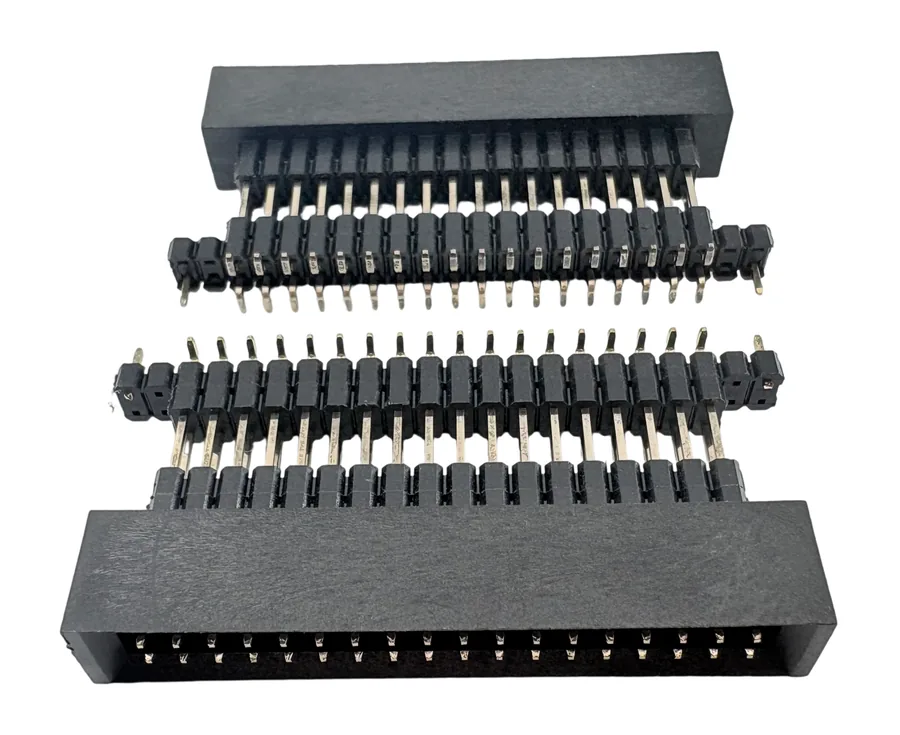

0117	2.54mm SMT PH + Box Hybrid Connector	2.54mm	By drawing / By drawing	SMT	Customizable by drawing/sample	Request drawing

Get 2D drawing or send RFQ

If a 2D PDF drawing is available for the selected code, Kirision can unlock the drawing after you submit company, email, country, product code/model, target quantity and project notes. Use RFQ quote when you need price, sample quantity, batch quantity, plating or custom height review.

Name
Email
Company
Country
Product code/model
Quantity
Project notes

Get 2D drawing RFQ quote

When should I use a PH + BOX hybrid connector project?

Use this route when a standard pin header or box header does not fit the height, housing or mating requirement.

What files are needed for OEM/ODM review?

Send drawing, sample photo, BOM, STEP, DWG or PDF files with quantity and application details.

RFQ quote Get 2D drawing View Custom OEM/ODM series Back to catalog Custom OEM/ODM support

PH plus box hybrid connector OEM/ODM support for projects that need pin header and box housing structures adjusted by drawing. Kirision can review total height, DIP or SMT mounting and pin layout.

RFQ checklist: send drawing, sample photo, BOM, STEP, DWG or PDF files when available. Confirm pitch, rows, positions, mounting style, orientation, tail length, plating, sample quantity and batch quantity.

ISO 9001 quality management documentation can be provided for qualified RFQ projects. RoHS material compliance review is available on request when export projects require it.
