1.27mm Ejector Header Connector

1.27mm ejector header connector series for IDC ribbon cable and compact PCB applications. Kirision can review dual-row vertical DIP, right-angle and SMT structures, mating IDC socket fit, latch direction and plating before RFQ.

Get 2D drawing RFQ quote View Box Header series

1.27mm Vertical DIP Ejector Header Connector, Dual Row product photo by Kirision — Product example shown. Contact us for the required pin count and dimensions.

Available specifications

Product type: IDC ejector header connector
Pitch: 1.27mm
Rows: Dual row
Mounting style: Vertical DIP, right-angle through-hole and SMT
Catalog codes: 0060, 0063, 0130
Mating connector: IDC socket and ribbon cable assembly by pitch
Custom options: Latch direction, pin count, housing height and plating review

For a faster quote

Share a drawing or product photo if available.
Tell us the required pitch, pin count, mounting style and quantity.
We will confirm dimensions and customization options with you.

Available product variants3 catalog options

Code	Professional English Name	Pitch	Rows / Positions	Mounting	Height	Drawing
0060	1.27mm Vertical DIP Ejector Header Connector, Dual Row	1.27mm	Dual row / By drawing	Vertical DIP, Dual Row	Customizable by drawing/sample	Request drawing

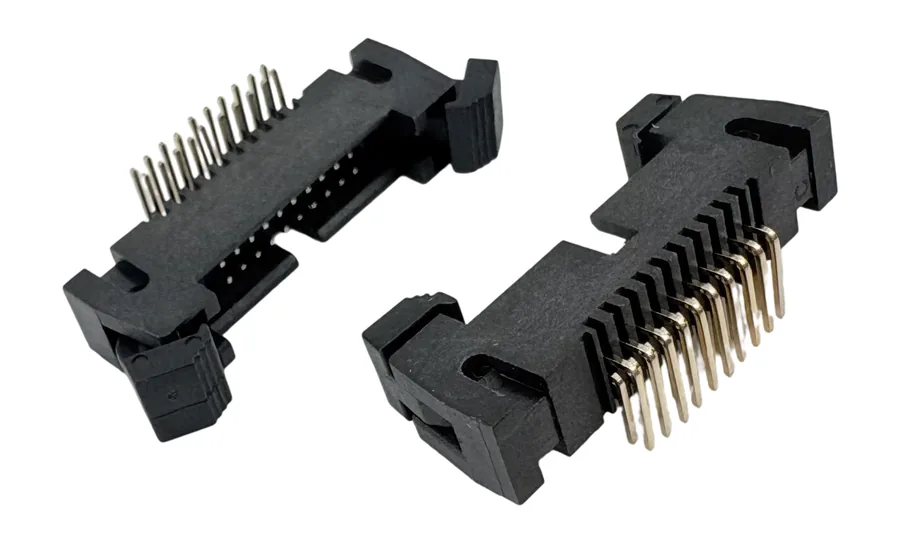

0063	1.27mm Right Angle Ejector Header Connector, Dual Row	1.27mm	Dual row / By drawing	Right Angle Through-Hole, Dual Row	Customizable by drawing/sample	Request drawing
0130	1.27mm SMT Ejector Header Connector, Dual Row	1.27mm	Dual row / By drawing	SMT, Dual Row	Customizable by drawing/sample	Request drawing

Get 2D drawing or send RFQ

Request the drawing for a selected code, or send an RFQ for pricing and customization.

Get 2D drawing RFQ quote

Related RFQ guides

Specification guides for this connector

Box header vs ejector header selection guide Compare standard shrouded headers and latch/ejector structures. Box header keying and orientation guide Check key notch, pin 1 position and IDC cable exit direction. IDC ribbon cable connector guide Review IDC socket, ribbon cable and mating header details together.

Is this the same as a box header connector?

It is a shrouded IDC header family with ejector latch structure, often reviewed together with box headers and mating IDC sockets.

Can Kirision check the latch direction?

Yes. Send the drawing, mating IDC socket or sample photo so latch direction and cable exit can be checked before quotation.

RFQ quote Get 2D drawing View Box Header series Back to catalog Custom OEM/ODM support

Connector Specification Review

For this connector, confirm pitch, rows, positions, mounting style, orientation, material, plating, packaging and mating connector before sample approval or production quotation.

Pitch	Confirm by drawing
Rows	Single row, dual row or custom
Positions	Custom pin count available
Mounting Style	Through-hole, SMT or right-angle options
Orientation	Straight or right angle
Insulator Material	PBT, PA6T or project-specified insulator
Contact Plating	Tin, gold flash or custom plating
Current Rating	Confirm by specification
Voltage Rating	Confirm by specification
Operating Temperature	Confirm by material and application

Files for Faster Quotation

Send PDF drawing, DWG, STEP, BOM, sample photo, target quantity and application notes. Kirision will review manufacturability, custom options, sample availability, MOQ and lead time.
