2.00mm Box Header Connector

2.0mm box header connector for IDC ribbon cable and PCB control board projects. Kirision can review DIP, right-angle or SMT structures, plastic height, pin count and plating for RFQ.

Get 2D drawing RFQ quote View Box Header series

2.00mm Vertical DIP Box Header Connector, Dual Row, 2x3P to 2x40P product photo by Kirision — Product example shown. Contact us for the required pin count and dimensions.

Available specifications

Product type: Box header connector
Pitch: 2.00mm
Positions: 2x3P to 2x50P options
Mounting style: DIP, right-angle and SMT options
Orientation: Straight or right-angle by drawing
Plastic height: Customizable
Custom options: Height, pin count, keying and plating review

For a faster quote

Share a drawing or product photo if available.
Tell us the required pitch, pin count, mounting style and quantity.
We will confirm dimensions and customization options with you.

Available product variants3 catalog options

Code	Professional English Name	Pitch	Rows / Positions	Mounting	Height	Drawing
0118	2.00mm Vertical DIP Box Header Connector, Dual Row, 2x3P to 2x40P	2.00mm	Dual row / 2x3P to 2x40P	Vertical DIP	Customizable by drawing/sample	Request drawing

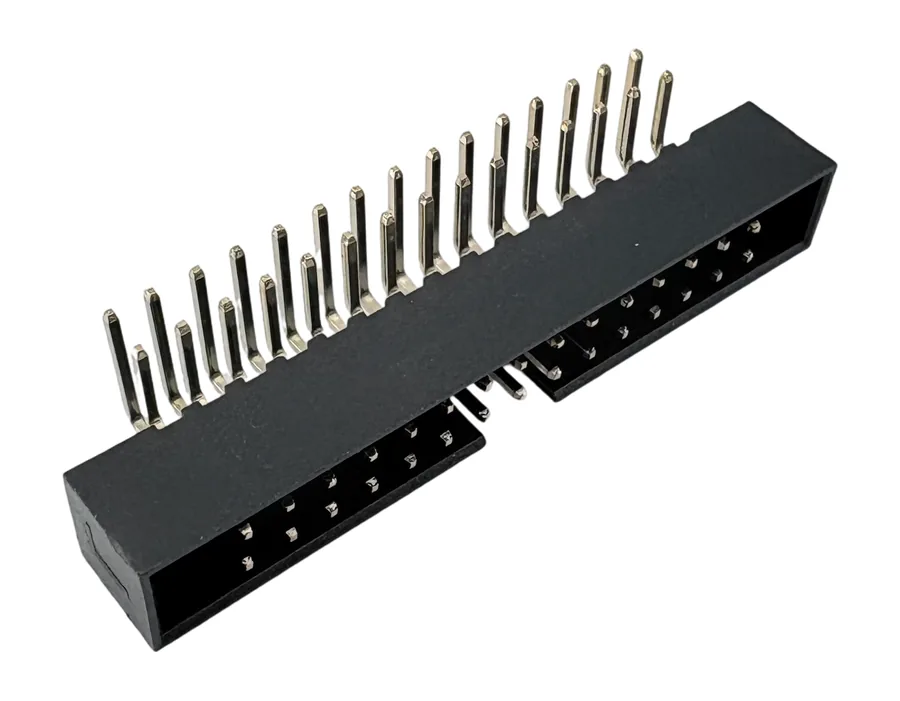

0035	2.00mm Right Angle Box Header Connector, Dual Row, 2x3P to 2x50P	2.00mm	Dual row / 2x3P to 2x50P	Right Angle Through-Hole	Customizable by drawing/sample	Request drawing

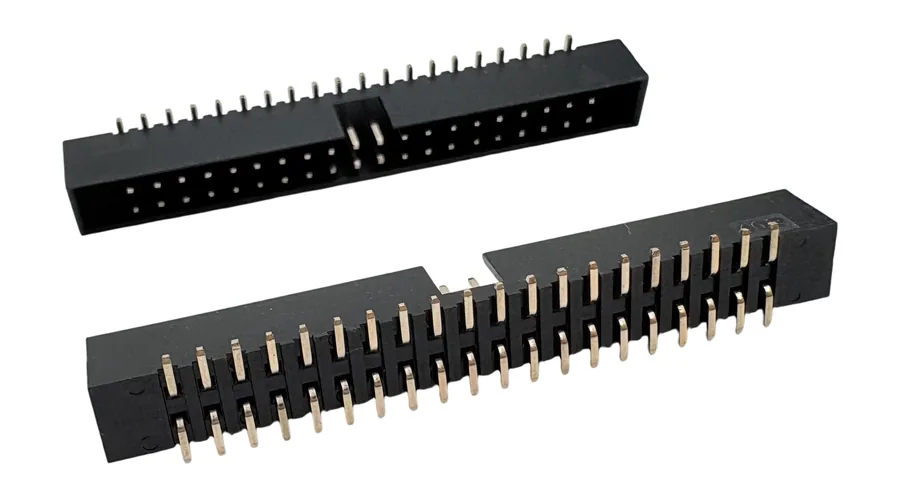

0048	2.00mm SMT Box Header Connector, Dual Row, 2x3P to 2x50P	2.00mm	Dual row / 2x3P to 2x50P	SMT	Customizable by drawing/sample	Request drawing

Get 2D drawing or send RFQ

Request the drawing for a selected code, or send an RFQ for pricing and customization.

Get 2D drawing RFQ quote

Related RFQ guides

Specification guides for this connector

Box header vs ejector header selection guide Compare standard shrouded headers and latch/ejector structures. Box header keying and orientation guide Check key notch, pin 1 position and IDC cable exit direction. IDC ribbon cable connector guide Review IDC socket, ribbon cable and mating header details together.

Is this 2.0mm box header suitable for IDC ribbon cable assemblies?

It can be reviewed for IDC ribbon cable applications when the mating IDC socket, key direction and cable orientation are provided.

Can the plastic height be customized?

Plastic height can be reviewed by drawing or sample when a standard height does not fit the PCB assembly.

RFQ quote Get 2D drawing View Box Header series Back to catalog Custom OEM/ODM support

Connector Specification Review

For this connector, confirm pitch, rows, positions, mounting style, orientation, material, plating, packaging and mating connector before sample approval or production quotation.

Pitch	Confirm by drawing
Rows	Single row, dual row or custom
Positions	Custom pin count available
Mounting Style	Through-hole, SMT or right-angle options
Orientation	Straight or right angle
Insulator Material	PBT, PA6T or project-specified insulator
Contact Plating	Tin, gold flash or custom plating
Current Rating	Confirm by specification
Voltage Rating	Confirm by specification
Operating Temperature	Confirm by material and application

Files for Faster Quotation

Send PDF drawing, DWG, STEP, BOM, sample photo, target quantity and application notes. Kirision will review manufacturability, custom options, sample availability, MOQ and lead time.
