1.27mm Box Header Connector

1.27mm box header connector for IDC ribbon cable and compact PCB connection projects. Kirision can review positions, orientation, plastic height, latch or keying requirements and plating before sample or batch RFQ.

Get 2D drawing RFQ quote View Box Header series

1.27mm Vertical DIP Box Header Connector, Dual Row, 2x3P to 2x50P product photo by Kirision — Product example shown. Contact us for the required pin count and dimensions.

Available specifications

Product type: Box header connector
Pitch: 1.27mm
Positions: 2x3P to 2x50P options
Mounting style: DIP, right-angle and SMT options
Orientation: Straight or right-angle by drawing
Plastic height: H4.9 / H5.7 optional
Custom options: Pin count, keying direction, height and plating review

For a faster quote

Share a drawing or product photo if available.
Tell us the required pitch, pin count, mounting style and quantity.
We will confirm dimensions and customization options with you.

Available product variants3 catalog options

Code	Professional English Name	Pitch	Rows / Positions	Mounting	Height	Drawing
0121	1.27mm Vertical DIP Box Header Connector, Dual Row, 2x3P to 2x50P	1.27mm	Dual row / 2x3P to 2x50P	Vertical DIP	Customizable by drawing/sample	Request drawing

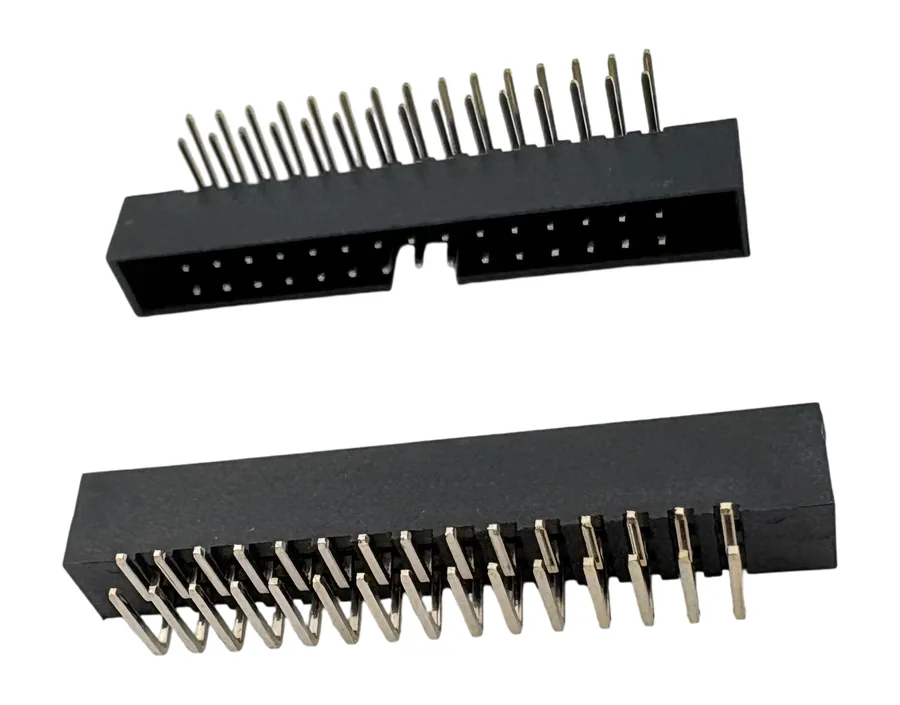

0134	1.27mm Right Angle Box Header Connector, Dual Row, 2x3P to 2x50P	1.27mm	Dual row / 2x3P to 2x50P	Right Angle Through-Hole	Customizable by drawing/sample	Request drawing

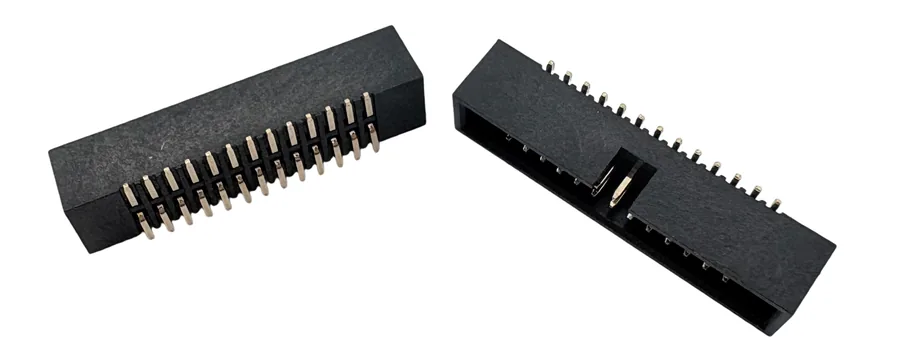

0129	1.27mm SMT Box Header Connector, Dual Row, 2x3P to 2x50P	1.27mm	Dual row / 2x3P to 2x50P	SMT	Customizable by drawing/sample	Request drawing

Get 2D drawing or send RFQ

Request the drawing for a selected code, or send an RFQ for pricing and customization.

Get 2D drawing RFQ quote

Related RFQ guides

Specification guides for this connector

Box header vs ejector header selection guide Compare standard shrouded headers and latch/ejector structures. Box header keying and orientation guide Check key notch, pin 1 position and IDC cable exit direction. IDC ribbon cable connector guide Review IDC socket, ribbon cable and mating header details together.

Can Kirision customize the pin count for this 1.27mm box header?

Yes. Send the required positions, drawing or sample photo so Kirision can confirm pin count, shroud structure and manufacturability.

What should I send for a box header RFQ?

Send pitch, positions, orientation, mating IDC socket, drawing or sample photo, quantity and any plating or packaging requirement.

RFQ quote Get 2D drawing View Box Header series Back to catalog Custom OEM/ODM support

Connector Specification Review

For this connector, confirm pitch, rows, positions, mounting style, orientation, material, plating, packaging and mating connector before sample approval or production quotation.

Pitch	Confirm by drawing
Rows	Single row, dual row or custom
Positions	Custom pin count available
Mounting Style	Through-hole, SMT or right-angle options
Orientation	Straight or right angle
Insulator Material	PBT, PA6T or project-specified insulator
Contact Plating	Tin, gold flash or custom plating
Current Rating	Confirm by specification
Voltage Rating	Confirm by specification
Operating Temperature	Confirm by material and application

Files for Faster Quotation

Send PDF drawing, DWG, STEP, BOM, sample photo, target quantity and application notes. Kirision will review manufacturability, custom options, sample availability, MOQ and lead time.
