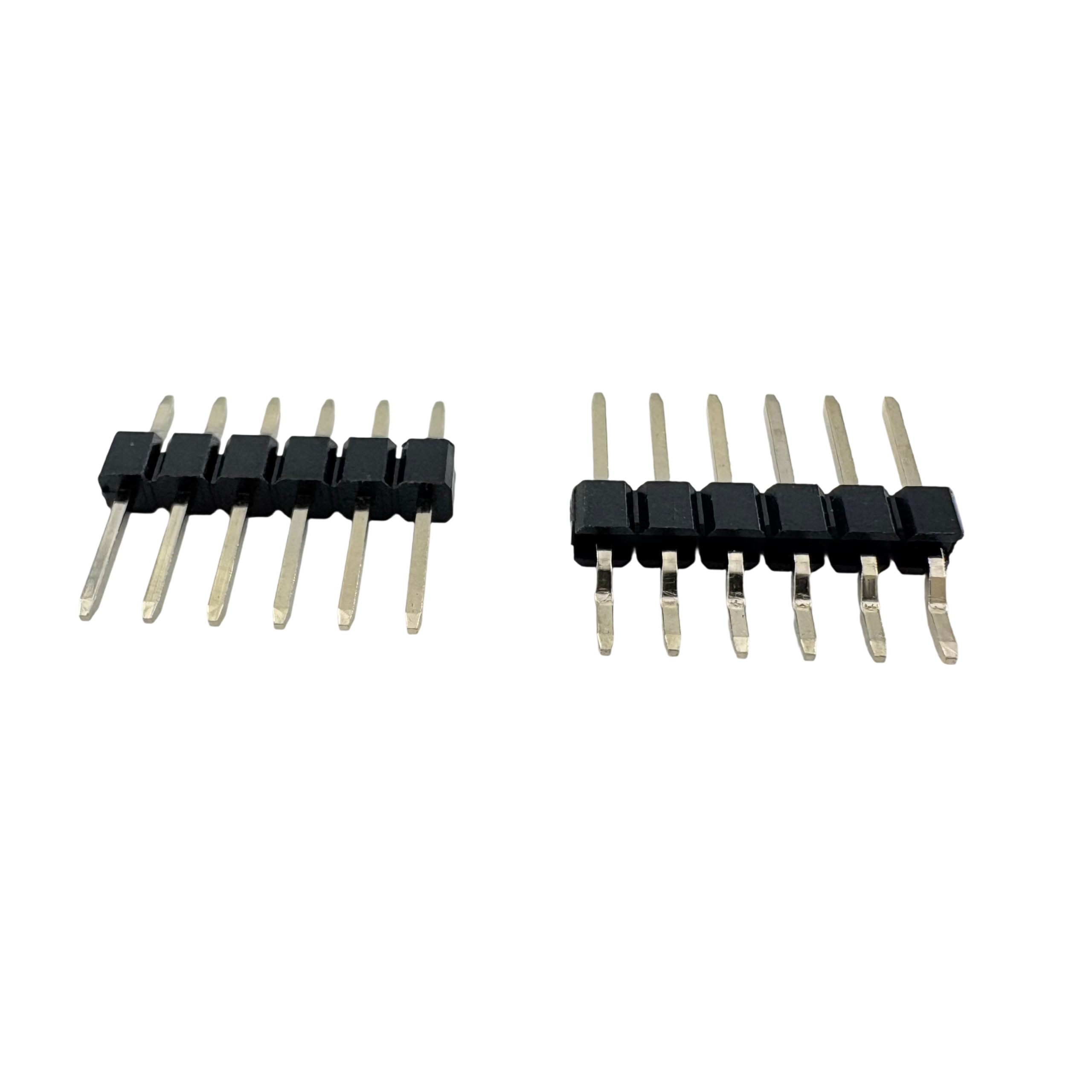

2.54mm Pin Header 1×1-1×40 PIN SMT (P/N 0013)
SKU:
0013
Specifications
PH2.54*2.5 1*1 PIN-1*40 PIN 单排卧贴 (塑胶高度H1.0/1.5/2.0/2.5）
Key Attributes
| Pitch | 2.54mm |
|---|---|
| Pin Count | 1x1-1x40 PIN |
| Orientation | SMT |
