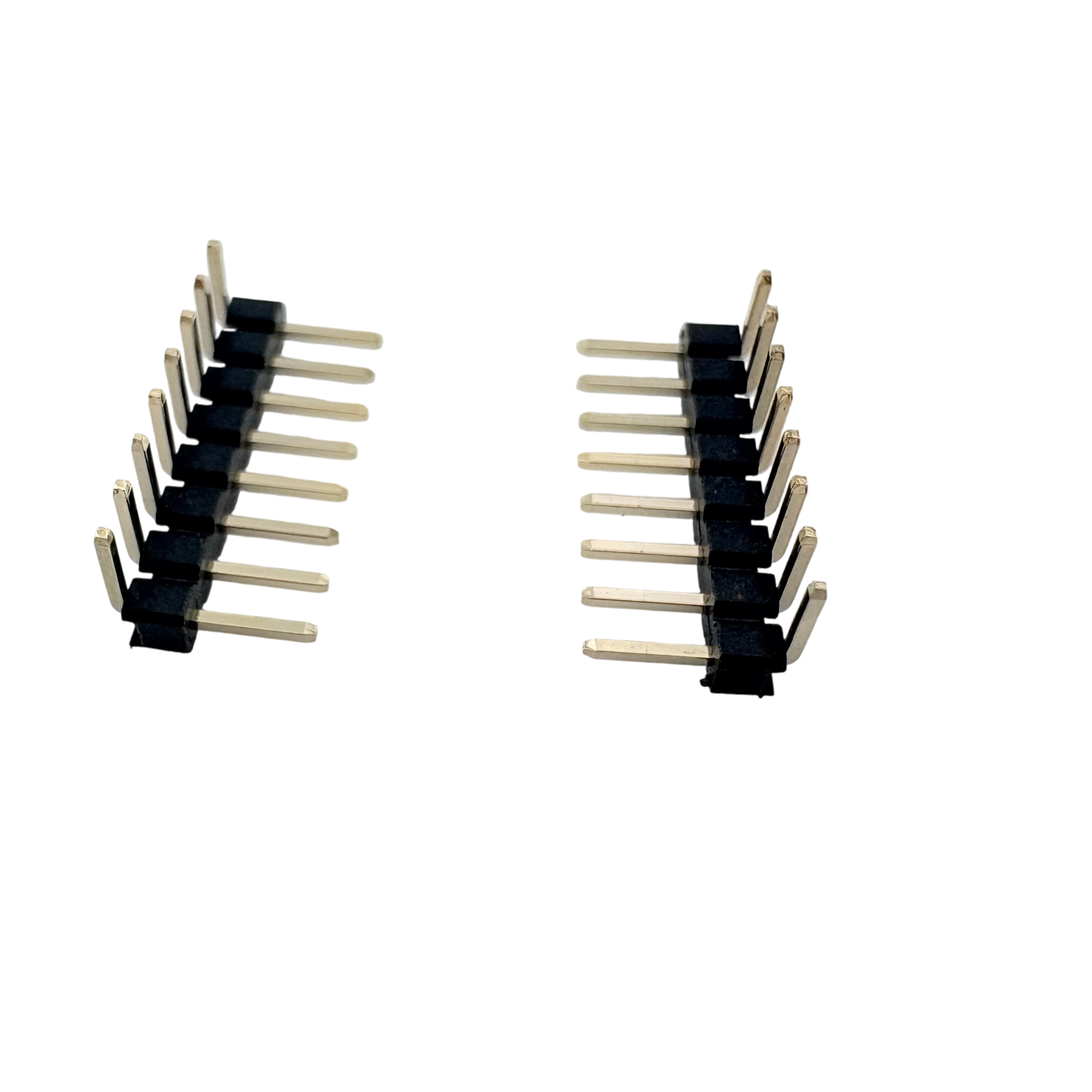

2.54mm Pin Header 1×1-1×40 PIN Right Angle (P/N 0115)
SKU:
0115
Specifications
PH2.54*2.5 1*1 PIN-1*40 PIN 90°单排单弯 (塑胶高度H1.0/1.5/2.0/2.5）
Key Attributes
| Pitch | 2.54mm |
|---|---|
| Pin Count | 1x1-1x40 PIN |
| Orientation | Right Angle |
Technical Drawing
Fill in your contact info below to receive the 2D drawing (PDF).
Request 3D Model (STEP)
Submit your company details to receive the 3D model package.
Form coming soon (integrates with RFQ flow).
Get Technical Drawing
Please share your contact info — we will send the PDF to your inbox and unlock it here.
